DC-DC converter; step down; Uin:2.25÷5.5V; Uout:0.5÷2.5V; 5.5A
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s 3 outputs can produce a current up to 3 A. Using the part will provide the power your application needs by requiring a voltage only of 2.25 V and not exceeding a voltage of 5.5 V. With an adjustable output that has a voltage of 0.5 to 2.5 V, this is power management at its best. This converter is 94 % efficient. It has a switching frequency of 400 to 4000 kHz. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 2
输出电压 0.5.2.5 V
输出电流 5.5 A
开关频率 400kHz ~ 4000kHz
输入电压Max 5.5 V
输入电压Min 2.25 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.25V ~ 5.5V
安装方式 Surface Mount
引脚数 24

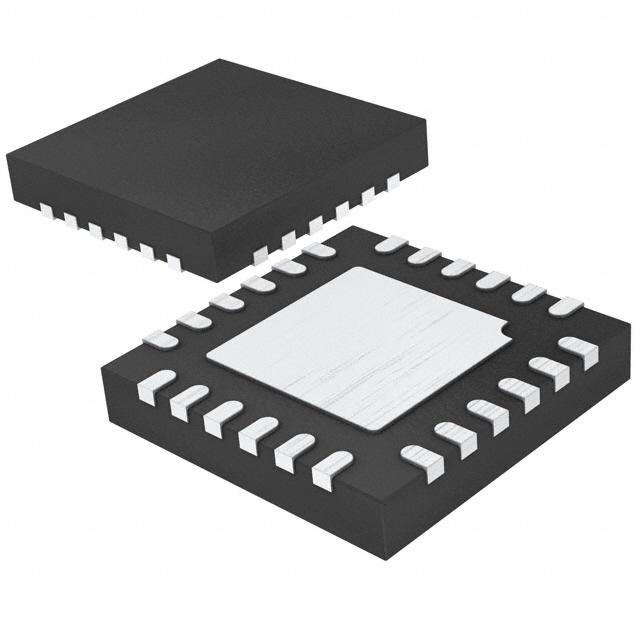

封装 QFN-24
高度 0.75 mm
封装 QFN-24
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown

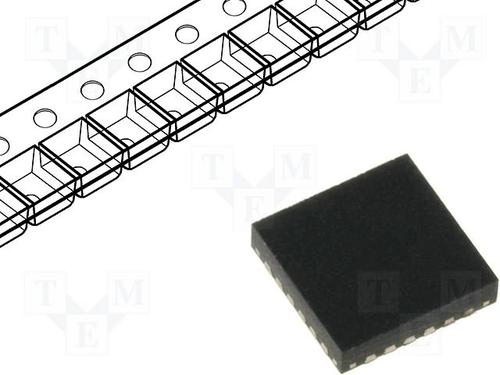

包装方式 Tape & Reel TR
制造应用 转换器, DDR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3618IUF#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3618IUF#PBF 凌力尔特 | 类似代替 | LTC3618IUF#TRPBF和LTC3618IUF#PBF的区别 |
