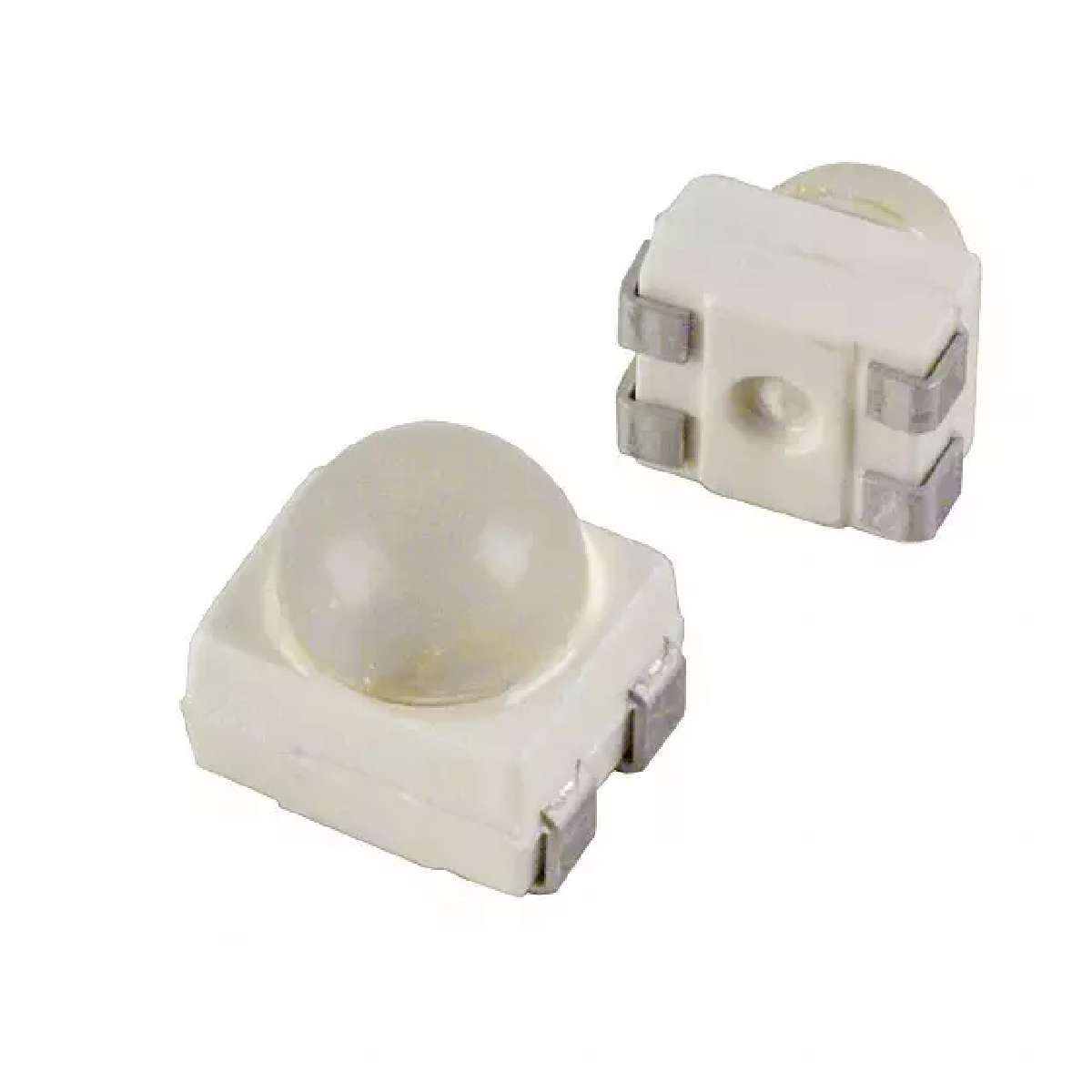

LED YELLOW CLEAR 4PLCC SMD
黄色 590nm 指示 - 分立 2.15V 4-PLCC
艾睿: LED Uni-Color Yellow 597nm Automotive 4-Pin PLCC T/R
正向电压 2.15 V
波长 590 nm
视角 60°
峰值波长 597 nm
测试电流 50 mA
正向电压Max 2.65 V
正向电流Max 70 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 4
封装 PLCC-4

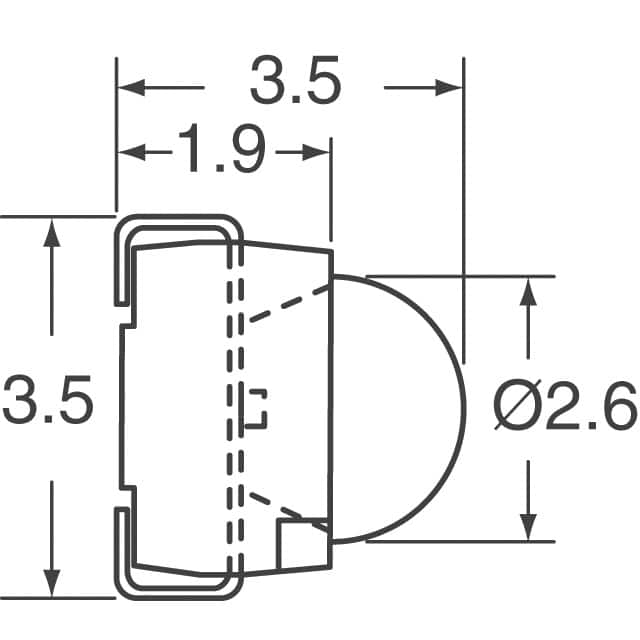

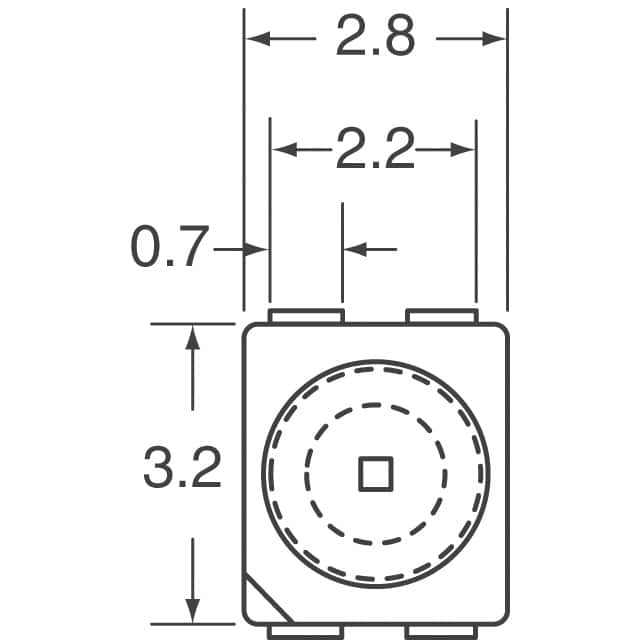

高度 3.50 mm
颜色 Yellow
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 无铅
数据手册
