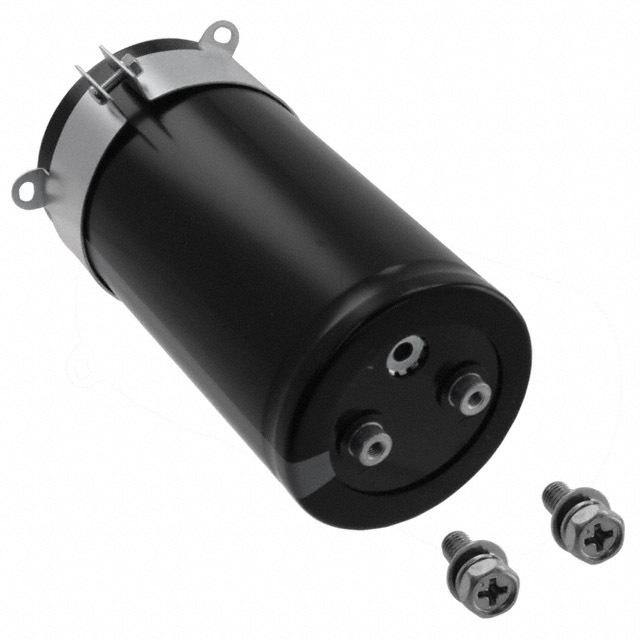

LNK2W222MSEH

2.2mF ±20% 450V Φ76.2mm 85mm

This electrolytic aluminum capacitor from has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its leakage current is 2980@5Min μA. It has a tolerance of 20%. This product is 85 mm tall with a diameter of 76.2 mm. Its capacitance value is 2200uF. The LNK2W222MSEH aluminum electrolytic capacitor has a screw terminal termination style.
