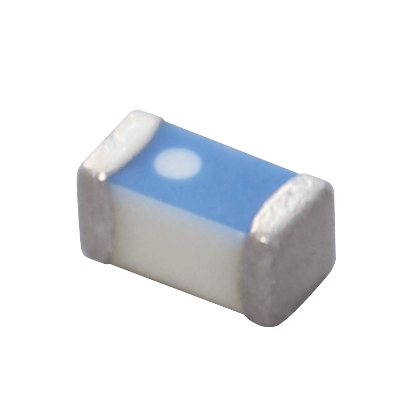

LQP03TN4N1B02D

0201 4.1nH ±0.1nH

4.1nH Unshielded Thick Film Inductor 350mA 400mOhm Max 0201 0603 Metric

立创商城:
4.1nH ±0.1nH 400mΩ

得捷:
FIXED IND 4.1NH 350MA 400MOHM SM

贸泽:
Fixed Inductors 0201 4.1nH 0.1nH

艾睿:
Use this rf chip LQP03TN4N1B02D surface mount inductor from Murata to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 5.3G Hz. This SMD inductor has a maximum DC current of 350m A with a maximum resistance of 400m Ohm. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. This device utilizes thin film technology. It has an inductance of 4.1n H.

Verical:
Inductor RF Chip Unshielded Thin Film 0.0041uH 0.1nH 500MHz 14Q-Factor Non Magnetic 0.35A 0.4Ohm DCR 0201 T/R
