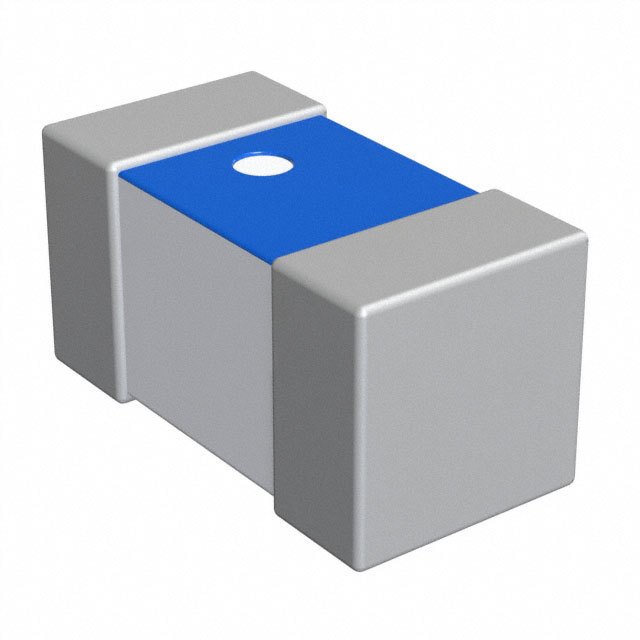

LQP03TN1N4B02D

片式电感器（片状线圈），高频薄膜型 Chip Inductor Chip Coil for High Frequency Film Type

1.4nH Unshielded Thick Film Inductor 600mA 150mOhm Max 0201 0603 Metric

立创商城:
1.4nH ±0.1nH 150mΩ

得捷:
FIXED IND 1.4NH 600MA 150MOHM SM

艾睿:
This rf chip LQP03TN1N4B02D surface mount inductor from Murata is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device utilizes thin film technology. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 16G Hz. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. It has an inductance of 1.4n H. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 150m Ohm.

安富利:
Ind RF Chip Thin Film 1.4nH 0.1nH 500MHz 14Q-Factor 600mA 0201 Paper T/R

Verical:
Inductor RF Chip Unshielded Thick Film 0.0014uH 0.1nH 500MHz 14Q-Factor 0.6A 0.15Ohm DCR 0201 T/R

Win Source:
1.4nH Unshielded Thin Film Inductor 600mA 150 mOhm Max 0201 0603 Metric
