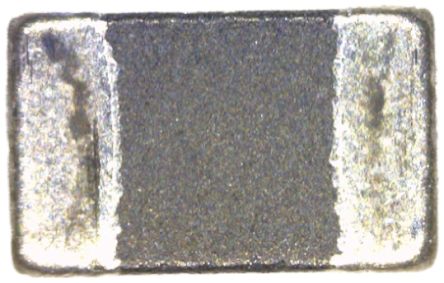

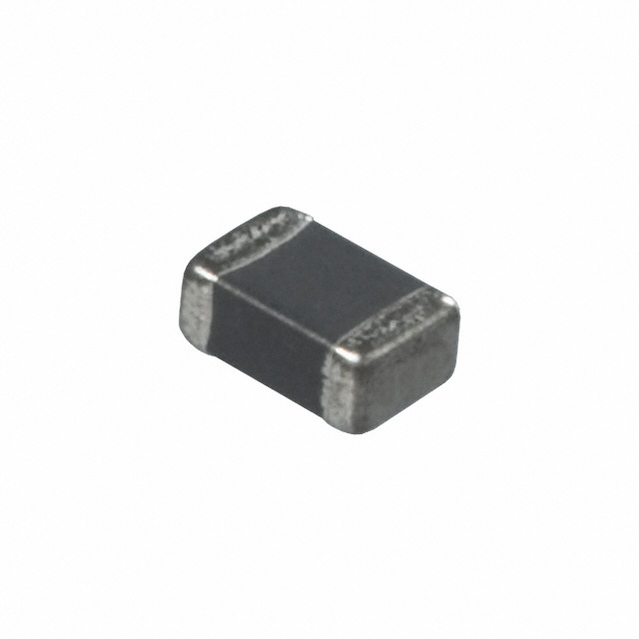

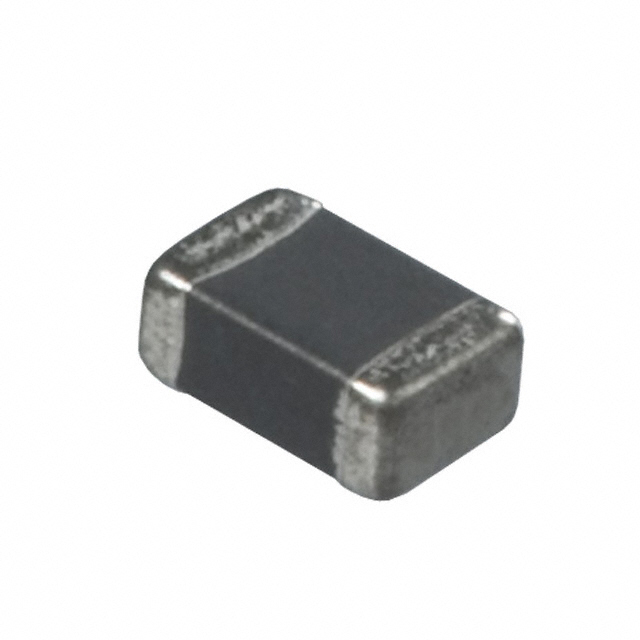

Murata 0805 LQW21F 系列磁性屏蔽多层片式扼流圈LQM21 系列的磁性屏蔽片式电感器设计,采用 Murata 的原始多层处理技术和磁性材料。 2.0x1.25mm 的微型尺寸使电气设备的设计更紧凑。 ### 表面安装 0805 电感器(扼流圈)
Murata 0805 LQW21F 系列磁性屏蔽多层片式扼流圈
LQM21 系列的磁性屏蔽片式器设计,采用 Murata 的原始多层处理技术和磁性材料。
2.0x1.25mm 的微型尺寸使电气设备的设计更紧凑。
得捷:
FIXED IND 2.2UH 150MA 364MOHM SM
立创商城:
2.2uH ±30% 150mA 364mΩ
欧时:
Murata LQM21F 系列 LQM21FN2R2N00D 2.2 μH ±30% 多层贴片式电感器, 0805 2012M封装, SRF: 70MHz 150mA dc
贸泽:
Fixed Inductors 0805 2.2uH +/-30% DCR 0.28ohm
艾睿:
Save valuable space on a PCB with this power chip LQM21FN2R2N00D surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 70M Hz. This product is 2.2 mm long, 1.05 mm tall and 1.45 mm deep. It has an inductance of 2.2u H. This SMD inductor has a maximum DC current of 150m A with a maximum resistance of 364m Ohm. This device is made with multi-layer technology.
安富利:
Ind Power Chip Shielded Multi-Layer 2.2uH 30% 1MHz Ferrite 150mA 0805 Paper T/R
富昌:
LQM Series 0805 2.2 uH ±30 % Tol. 150 mA SMT High Frequency Multilayer Inductor
Chip1Stop:
Inductor Power Chip Shielded Multi-Layer 2.2uH 30% 1MHz Ferrite 150mA 364mOhm DCR 0805 T/R
Verical:
Inductor Power Chip Shielded Multi-Layer 2.2uH 30% 1MHz Ferrite 0.15A 0.364Ohm DCR 0805 T/R
儒卓力:
**LQM21FN 2,2uH 150mA 30% MLT **
Win Source:
2.2μH Shielded Multilayer Inductor 150mA 364 mOhm Max 0805 2012 Metric
额定电流 150 mA
容差 ±30 %
电感 2.2 µH
自谐频率 70 MHz
产品系列 LQM
阻值偏差 ±30 %
屏蔽 Yes
电感公差 ±30 %
测试频率 1 MHz
电阻DC) ≤364 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 280 mΩ
安装方式 Surface Mount
封装公制 2012
封装 0805

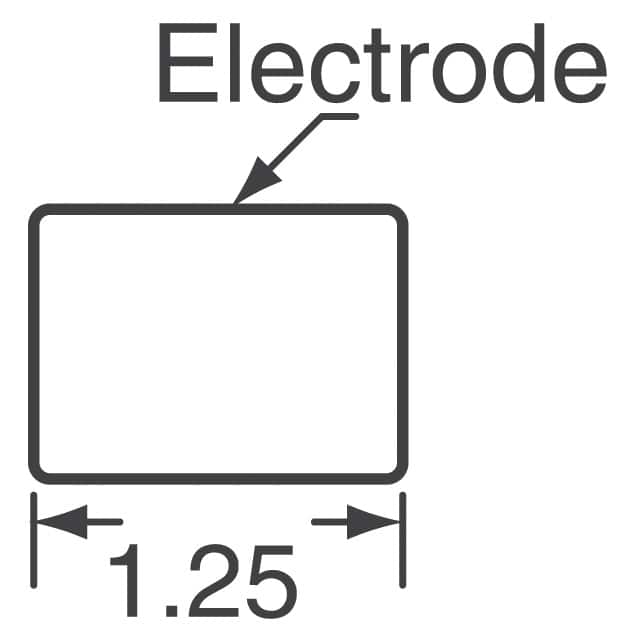

长度 2 mm
宽度 1.25 mm
高度 1.05 mm
封装公制 2012
封装 0805
重量 0.010 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
