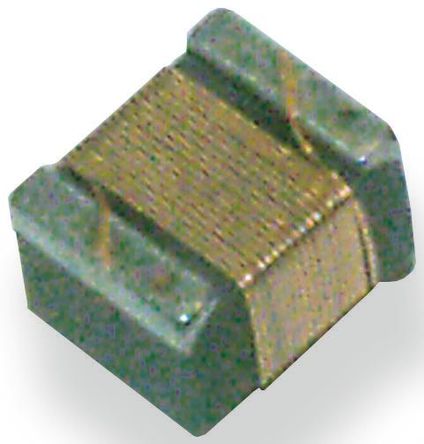

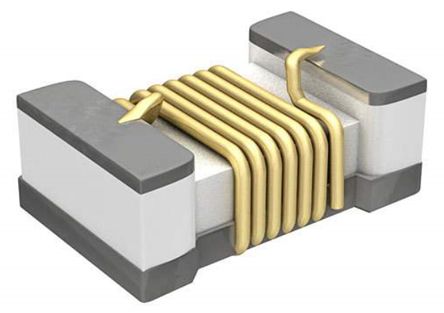

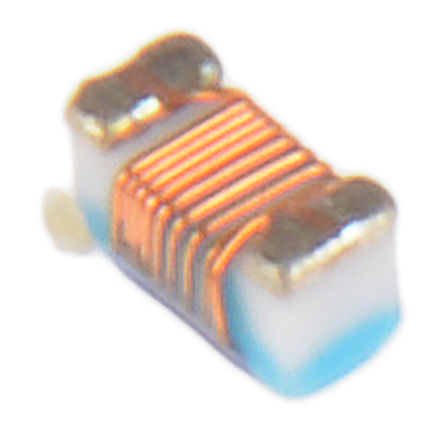

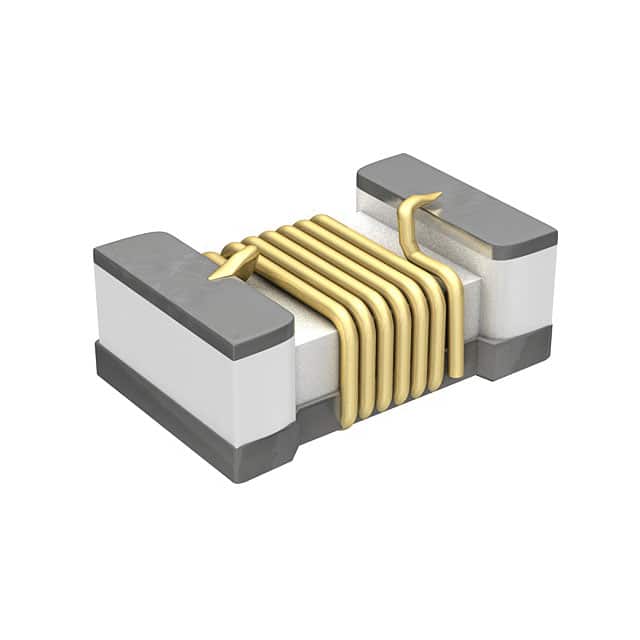

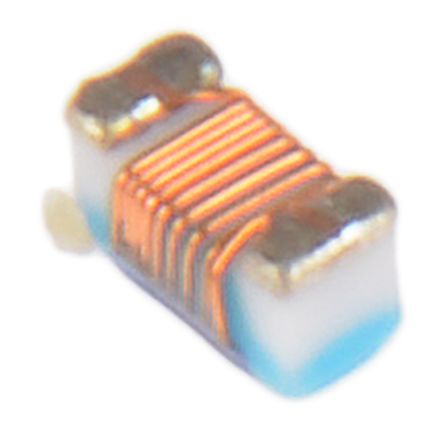

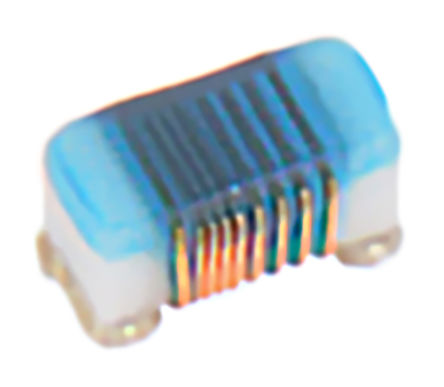

LQW15AN22NJ00D

Murata 0402 LQW15AN_00D 系列线绕电感器 0.01μH - 0.047μH高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 应用：高频率电路，用于无线电信设备，例如蓝牙、GSM、W-LAN。 ### 表面安装 0402 电感器（扼流圈）

Murata 0402 LQW15AN_00D 系列线绕器 0.01μH - 0.047μH

高质量线圈电感器，设计用于 VHF 和 UHF 应用。

高谐振频率。

低容差电感值。

应用：高频率电路，用于无线电信设备，例如蓝牙、GSM、W-LAN。

得捷:
FIXED IND 22NH 310MA 300MOHM SMD

立创商城:
22nH ±5% 300mΩ

欧时:
Murata LQW15A 系列 铁氧体芯材 22 nH 绕线贴片电感器 LQW15AN22NJ00D, ±5%容差, 310mA Idc Q:25

艾睿:
Make any circuit look clean and compact using this rf chip LQW15AN22NJ00D surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 5%. This device is made with wirewound technology. It has an inductance of 22n H. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 4G Hz. This SMD inductor has a maximum DC current of 310m A with a maximum resistance of 300m Ohm.

安富利:
Ind RF Chip Wirewound 22nH 5% 100MHz 25Q-Factor 310mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 22nH 5% 100MHz 25Q-Factor 310mA 300mOhm DCR 0402 T/R

TME:
Inductor: wire; SMD; 0402; 22nH; 310mA; 0.3Ω; Q:25; ftest:100MHz

Verical:
Inductor RF Chip Unshielded Wirewound 0.022uH 5% 100MHz 25Q-Factor Non Magnetic 0.31A 0.3Ohm DCR 0402 T/R

儒卓力:
**LQW15A 0,022µH 310mA 5% WWT **

Win Source:
FIXED IND 22NH 310MA 300 MOHM
