LQW15AN7N3H00D

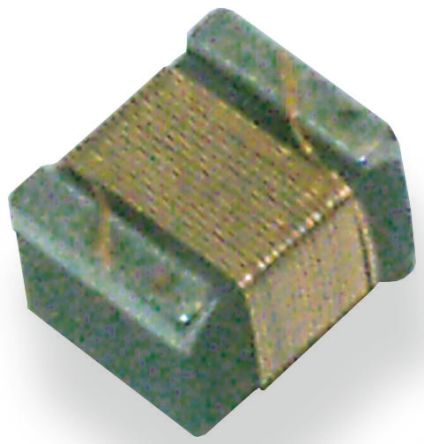

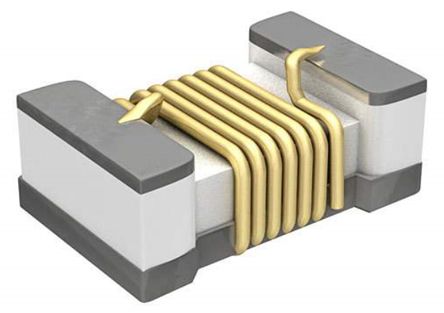

Murata 0402 LQW15AN_00D 系列线绕电感器 0.0015μH - 0.0095μH高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 应用：高频率电路，用于无线电信设备，例如蓝牙、GSM、W-LAN。 ### 表面安装 0402 电感器（扼流圈）

固定器

得捷:
FIXED IND 7.3NH 570MA 130MOHM SM

欧时:
Murata LQW15A 系列 铁氧体芯材 7.3 nH 绕线贴片电感器 LQW15AN7N3H00D, ±3%容差, 570mA Idc Q:25

贸泽:
Fixed Inductors 7.3nH 3% 100MHz

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip LQW15AN7N3H00D surface mount inductor from Murata to save valuable space. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 570m A with a maximum resistance of 130m Ohm. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. It has an inductance of 7.3n H. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 6G Hz. It has a tolerance of 3%.

安富利:
Ind RF Chip Wirewound 7.3nH 3% 100MHz 25Q-Factor 570mA 0402 Paper T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.0073uH 3% 100MHz 25Q-Factor Non Magnetic 0.57A 0.13Ohm DCR 0402 T/R
