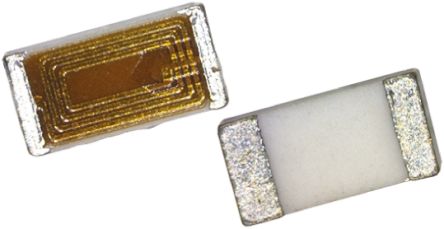

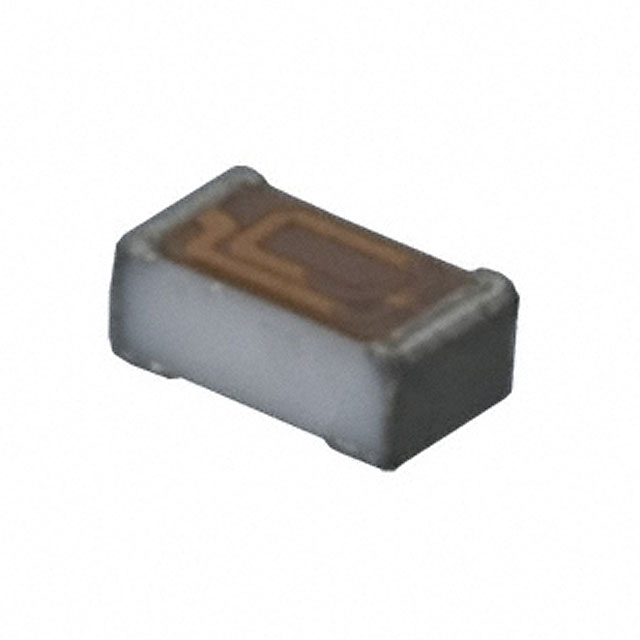

LQP18MN8N2C02D

LQP18M 系列 0603 8.2 nH 150 mA SMD 高频率 贴片电感

Murata 0603 LQP18M Series Thin Film Inductors

LQP15M 超小型薄型片式器，带薄膜技术结构。 提供各种电感值，可实现无调谐装配。

高频率范围时的高 Q

由于低杂散电容和窄电感分布产生的高自谐振频率可在高频电路（例如电信器件）中提供稳定的电感

### Applications:-

移动电话的高频率电路，如 PA、ANT、VCO、SAW 等。

移动电话

蓝牙

W-LAN

一般高频电路

立创商城:
8.2nH ±0.2nH 800mΩ

得捷:
FIXED IND 8.2NH 150MA 800MOHM SM

欧时:
Murata LQP18M 系列 8.2 nH 绕线贴片电感器 LQP18MN8N2C02D, ±0.2nH容差, 150mA Idc Q:17

贸泽:
Fixed Inductors 8.2nH 0603

艾睿:
Save valuable space on a PCB with this rf chip LQP18MN8N2C02D surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 150m A with a maximum resistance of 800m Ohm. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 3.6G Hz. This device is made with thin film technology. It has an inductance of 8.2n H. This product is 1.75 mm long, 0.6 mm tall and 0.95 mm deep.

安富利:
Ind RF Chip Thin Film 8.2nH 0.2nH 500MHz 17Q-Factor 150mA 0603 Paper T/R

富昌:
LQP18M 系列 0603 8.2 nH 150 mA SMD 高频率 贴片电感

Chip1Stop:
Inductor RF Chip Thin Film 8.2nH 0.2nH 500MHz 17Q-Factor 150mA 800mOhm DCR 0603 T/R

Verical:
Inductor RF Chip Unshielded Thin Film 0.0082uH 0.2nH 500MHz 17Q-Factor Non Magnetic 0.15A 0.8Ohm DCR 0603 T/R

Win Source:
8.2nH Unshielded Thick Film Inductor 150mA 800 mOhm Max 0603 1608 Metric
