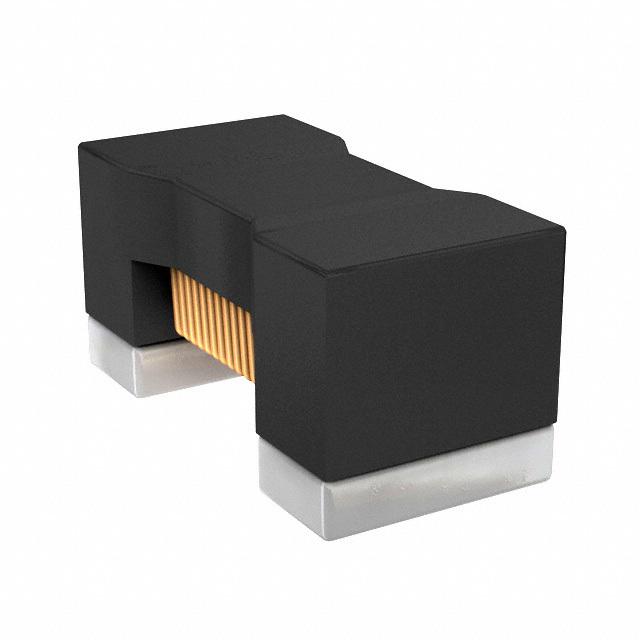

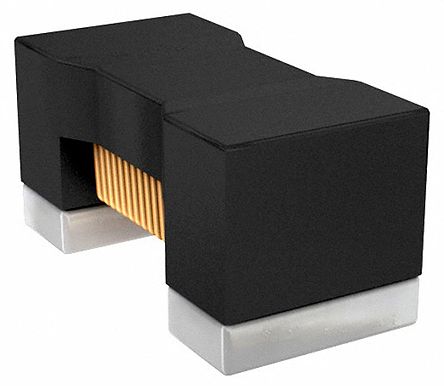

LQW18AN6N8D10D

LQW18A 系列 0603 6.8 nH 900 mA SMD 线绕 贴片电感

Murata 0603 LQW18AN 系列线绕器

高质量线圈电感器，设计用于 VHF 和 UHF 应用。

高谐振频率。

低容差电感值。

带有后缀 "10D" 的型号具有较低直流电阻值。

**应用：**高频率电路，用于无线电信设备：例如蓝牙、GSM、W-LAN。

立创商城:
6.8nH ±0.5nH 45mΩ

得捷:
FIXED IND 6.8NH 900MA 45MOHM SMD

欧时:
Murata LQW18A 系列 6.8 nH 绕线贴片电感器 LQW18AN6N8D10D, ±0.5nH容差, 900mA Idc Q:38, 45mΩ最大直流电阻

贸泽:
Fixed Inductors 6.8 NH

艾睿:
This rf chip LQW18AN6N8D10D surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 1.8 mm long, 1 mm tall and 1.1 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 7G Hz. This SMD inductor has a maximum DC current of 900m A with a maximum resistance of 45m Ohm. It has an inductance of 6.8n H. This device utilizes wirewound technology.

安富利:
Ind RF Chip Wirewound 6.8nH 0.5nH 100MHz 38Q-Factor 900mA 0603 Paper T/R

富昌:
LQW18A 系列 0603 6.8 nH 900 mA SMD 线绕 贴片电感

Chip1Stop:
Inductor RF Chip Wirewound 6.8nH 0.5nH 100MHz 38Q-Factor 900mA 45mOhm DCR 0603 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.0068uH 0.5nH 100MHz 38Q-Factor Non Magnetic 0.9A 0.045Ohm DCR 0603 T/R
