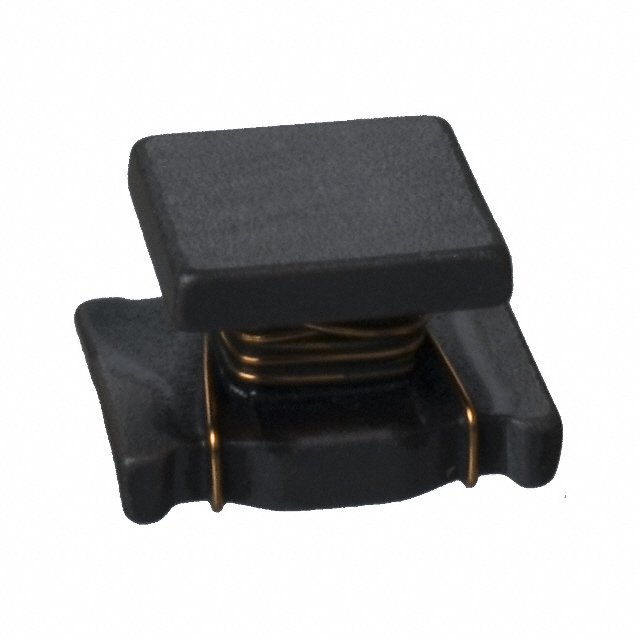

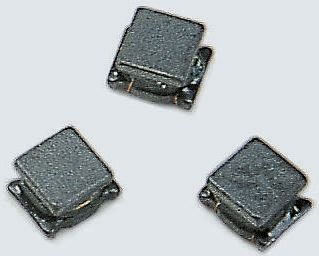

LQH43MN120K03L

Murata 1812 LQH43MN 系列线绕电感器线圈贴片式电感器绕在铁氧体磁芯上。 高频率时的质量高。 低直流电阻。 高电流和电感。 ### 表面安装 1812 电感器（扼流圈）

Murata 1812 LQH43MN 系列线绕器

线圈贴片式电感器绕在铁氧体磁芯上。

高频率时的质量高。

低直流电阻。

高电流和电感。

得捷:
FIXED IND 12UH 380MA 620MOHM SMD

立创商城:
12uH ±10% 620mΩ

欧时:
Murata LQH43MN 系列 铁氧体芯材 12 μH 绕线贴片电感器 LQH43MN120K03L, ±10%容差, 380mA Idc Q:35

贸泽:
Fixed Inductors 12uH 10%

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this general purpose chip LQH43MN120K03L surface mount inductor from Murata to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 4.8 mm long, 2.8 mm tall and 3.4 mm deep. This SMD inductor has a maximum DC current of 380m A with a maximum resistance of 620m Ohm. It has a tolerance of 10%. This device utilizes wirewound technology. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 21M Hz. It has an inductance of 12u H.

安富利:
Ind General Purpose Chip Unshielded Wirewound 12uH 10% 1MHz 35Q-Factor Ferrite 380mA 1812 Embossed T/R

Verical:
Inductor General Purpose Chip Unshielded Wirewound 12uH 10% 1MHz 35Q-Factor Ferrite 0.38A 0.62Ohm DCR 1812 T/R
