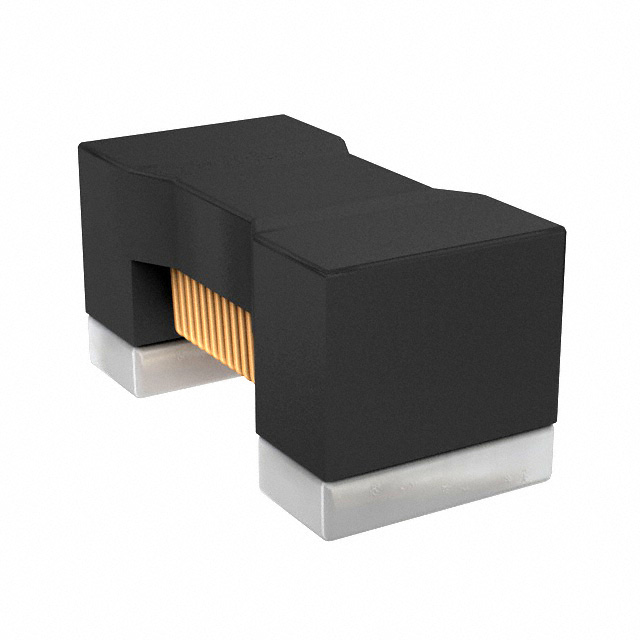

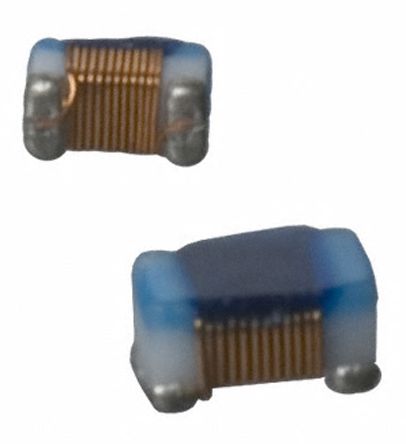

LQW18CN33NJ00D

MURATA  LQW18CN33NJ00D  表面贴装高频电感器, LQW18A_00系列, 33 nH, ± 5%, 0603 [1608 公制], 1.8 GHz, 0.035 ohm

LQW18CN 系列 SMD 片状器

Murata LQW 系列线绕射频电感器包括一个高 Q 值，为过滤器通频带内部提供极佳衰减特性。 这些 LQW 电感器用于匹配天线应用，以便保持天线接收和传输灵敏度。 LQW 具有低直流电阻特性，可部署在具有高电流级别流的扼流电路中。

### 特点

提供两种类型的结构，用于不同的应用

高 Q 值

可支持大电流

低直流电阻抗

得捷:
FIXED IND 33NH 1.7A 35 MOHM SMD

欧时:
Murata LQW18CN_00 系列 铁氧体芯材 33 nH 绕线贴片电感器 LQW18CN33NJ00D, ±5%容差, 1.7A Idc

立创商城:
33nH ±5% 35mΩ

贸泽:
Fixed Inductors 0603 33nH +/-5% 1700mA DCR .035ohm

e络盟:
MURATA  LQW18CN33NJ00D  表面贴装高频电感器, LQW18A_00系列, 33 nH, ± 5%, 0603 [1608 公制], 1.8 GHz, 0.035 ohm

艾睿:
Make any circuit look clean and compact using this power chip LQW18CN33NJ00D surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 5%. This device is made with wirewound technology. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep. Its test frequency is 10M Hz, while its minimum self-resonant frequency is 1.8G Hz. It has an inductance of 33n H. This SMD inductor has a maximum DC current of 1.7 A with a maximum resistance of 35m Ohm.

安富利:
Ind Power Chip Unshielded Wirewound 33nH 5% 10MHz Ferrite 1.7A 0603 Paper T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.033uH 5% 10MHz Ferrite 1.7A 0.035Ohm DCR 0603 T/R
