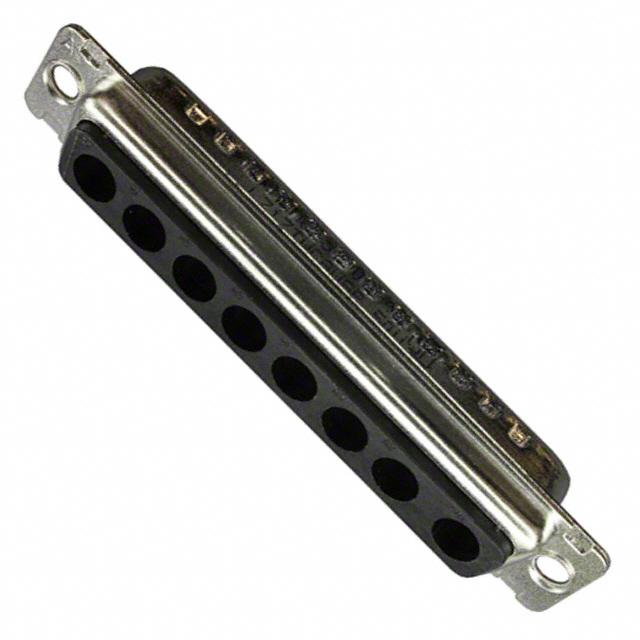

AMPHENOL COMMERCIAL PRODUCTS L717TWC8W8P 连接器, D-SUB, 混合式
The TW series D-sub Connectors permits a mix of contacts including signal, power, shielded, high voltage and fibre optics in the same housing with 18 different contacts arrangements. It was first developed from military series and has improved features new contacts, PCB configurations come preloaded with fixed contacts and brackets. A complete range of housings are also available for cable application. These connectors are supplied with screw machined contacts which are fixed in the insulator.
- .
- >5000MR at 500VDC Minimum insulation resistance
- .
- * 7.5A Current rating
- .
- -55 to 155°C Temperature range

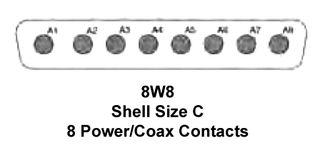

触点数 8
极性 Male
触点电镀 Gold
额定电流 7.5A/触头
绝缘电阻 5000 MΩ
排数 1
针脚数 8
拔插次数 200
额定电流Max 7.5 A
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压Max 300 VAC
工作电压Max 300 VAC
接触电阻Max 5 mΩ
安装方式 Solder
长度 69.2 mm
高度 12.4 mm
颜色 Black
触点材质 Brass
工作温度 -55℃ ~ 155℃
产品生命周期 Active
包装方式 Bag
制造应用 Computers & Computer Peripherals, 计算机和计算机周边, Industrial, Medical, 通信与网络, Communications & Networking, 工业, 医用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
