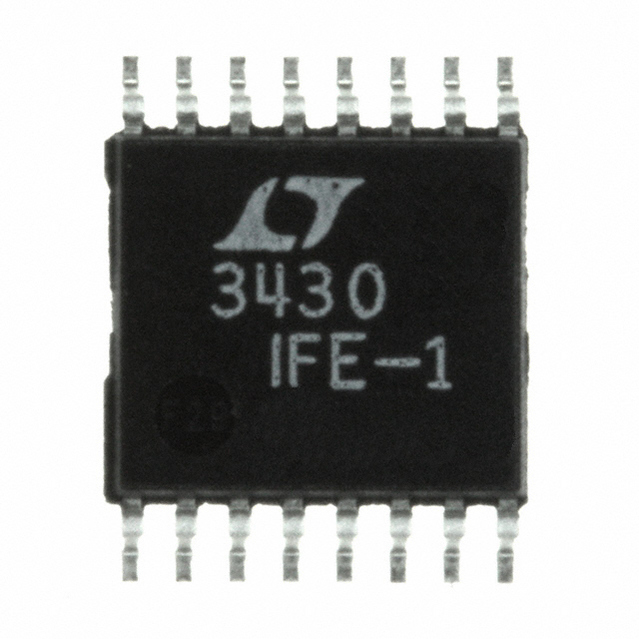

Conv DC-DC Single Step Down 5.5V to 60V 16Pin TSSOP EP
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 6.5 A. Using the part will provide the power your application needs by requiring a voltage only of 5.5 V and not exceeding a voltage of 60 V. With an adjustable output that has a voltage of 1.2 to 54 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a line regulation of 0.15%/V. This part offers a switching frequency of 120 kHz in order to work properly. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 60.0V max
输出接口数 1
输出电压 1.2V ~ 54V
输出电流 3 A
开关频率 100 kHz
输入电压Max 60 V
输入电压Min 5.5 V
输出电压Max 58.8 V
输出电压Min 1.219 V
输出电流Max 6.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 5.5 V
输入电压 5.5V ~ 60V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
高度 0.95 mm
封装 TSSOP-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3430IFE-1#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3430IFE-1#TRPBF 凌力尔特 | 完全替代 | LT3430IFE-1#PBF和LT3430IFE-1#TRPBF的区别 |
