LQW2UASR56J00L

MURATA  LQW2UASR56J00L  表面贴装高频电感器, LQW2UA系列, 560 nH, ± 5%, 1008 [2520 公制], 415 MHz, 1.33 ohm

LQW2UAS 系列 SMD 片状器

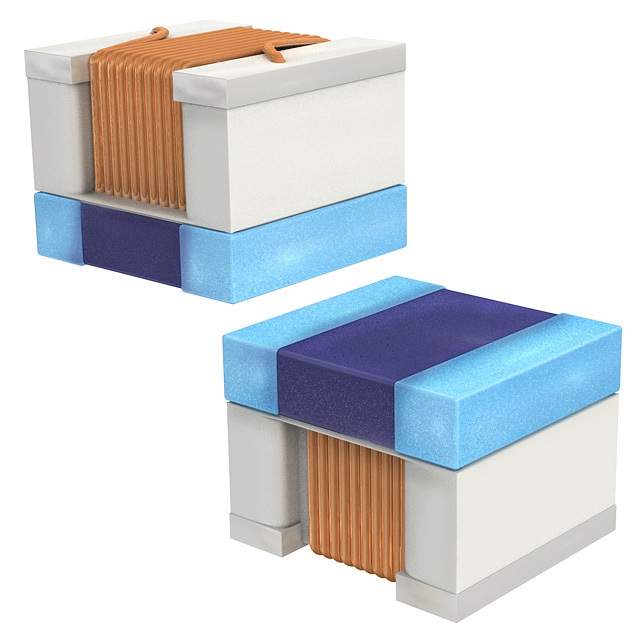

Murata LQW 系列线绕射频电感器包括一个高 Q 值，为过滤器通频带内部提供极佳衰减特性。 这些 LQW 电感器用于匹配天线应用，以便保持天线接收和传输灵敏度。 LQW 具有低直流电阻特性，可部署在具有高电流级别流的扼流电路中。

### 特点

提供两种类型的结构，用于不同的应用

高 Q 值

可支持大电流

低直流电阻抗

### Murata 非标准表面安装电感器（扼流圈）

欧时:
Murata LQW2UAS_00 系列 非磁核心芯材 560 nH 绕线贴片电感器 LQW2UASR56J00L, ±5%容差, 400mA Idc Q:45

立创商城:
560nH ±5% 400mA 1.33Ω

得捷:
FIXED IND 560NH 400MA 1.33OHM SM

e络盟:
高频电感器, 560 nH, LQW2UA系列, 400 mA, 1008 [2520 公制], 绕线, 1.33 ohm

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip LQW2UASR56J00L surface mount inductor from Murata to save valuable space. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 415M Hz. It has an inductance of 560n H. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 1.33 Ohm. It has a tolerance of 5%. This device is made with wirewound technology. This product is 2.92 mm long, 2.03 mm tall and 2.65 mm deep.

安富利:
Ind RF Chip Wirewound 560nH 5% 25MHz 45Q-Factor 400mA 1008 Embossed T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.56uH 5% 25MHz 45Q-Factor Non Magnetic 0.4A 1.33Ohm DCR 1008 T/R
