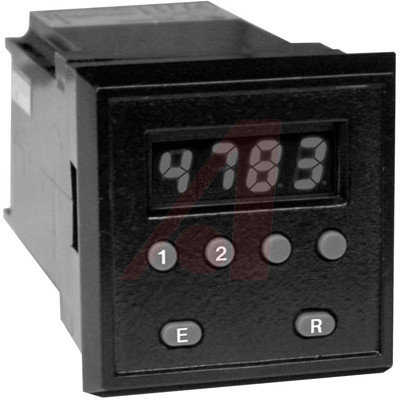

"Red Lion LIBT1E00 Libra Series 4-Digit Red LED Display 1-Preset Libra Timer 115V AC/11 - 14V DC, Black, "
Part of the Libra series of timers, the is a single preset unit with a 0.4" 10.2 mm High LED Display and is an economical and reliable solution for applications having a single preset timing requirement. LIBT1E00 has a solid-state output and a form C relay output for. The LIBT1E00 features a full complement of control inputs, programmable timed output values, non-volatile memory and many other features which will satisfy most any single preset timer requirement. The Libra Timers have two main timing actions, Reset to Zero RTZ [Time Up] and Reset to Preset RTP [Time Down]. With RTZ, the timer resets to zero, times up, and activates the outputs when the preset value is reached. When RTP is used, the unit starts at the preset value, times down, and activates the output when zero is reached. The LIBT1E00 features ten modes of operation.
* Single Preset
* 0.4" 10.2 mm High LED Display
* 11 Selectable Time Ranges
* Solid-State Current Sink Output
* Form C Relay Output
* Programmable Timed Output 0.01 SEC TO 99.99 SEC
* Simple Front Panel For Programming
* Meets Din Panel Mount Specifications
* Remote Reset Capability
* Instantaneous & Delayed Contacts
* Non-Volatile Memory E2PROM
* Sealed Front Panel Construction NEMA 4/IP65
* Ability To Lock Out Front Panel Functions
* Front Panel Reset Enable/Disable
