LCMA25-6-C

LCMA25-6-C图片1
LCMA25-6-C图片2
LCMA25-6-C图片3
LCMA25-6-C图片4
LCMA25-6-C图片5
LCMA25-6-C图片6

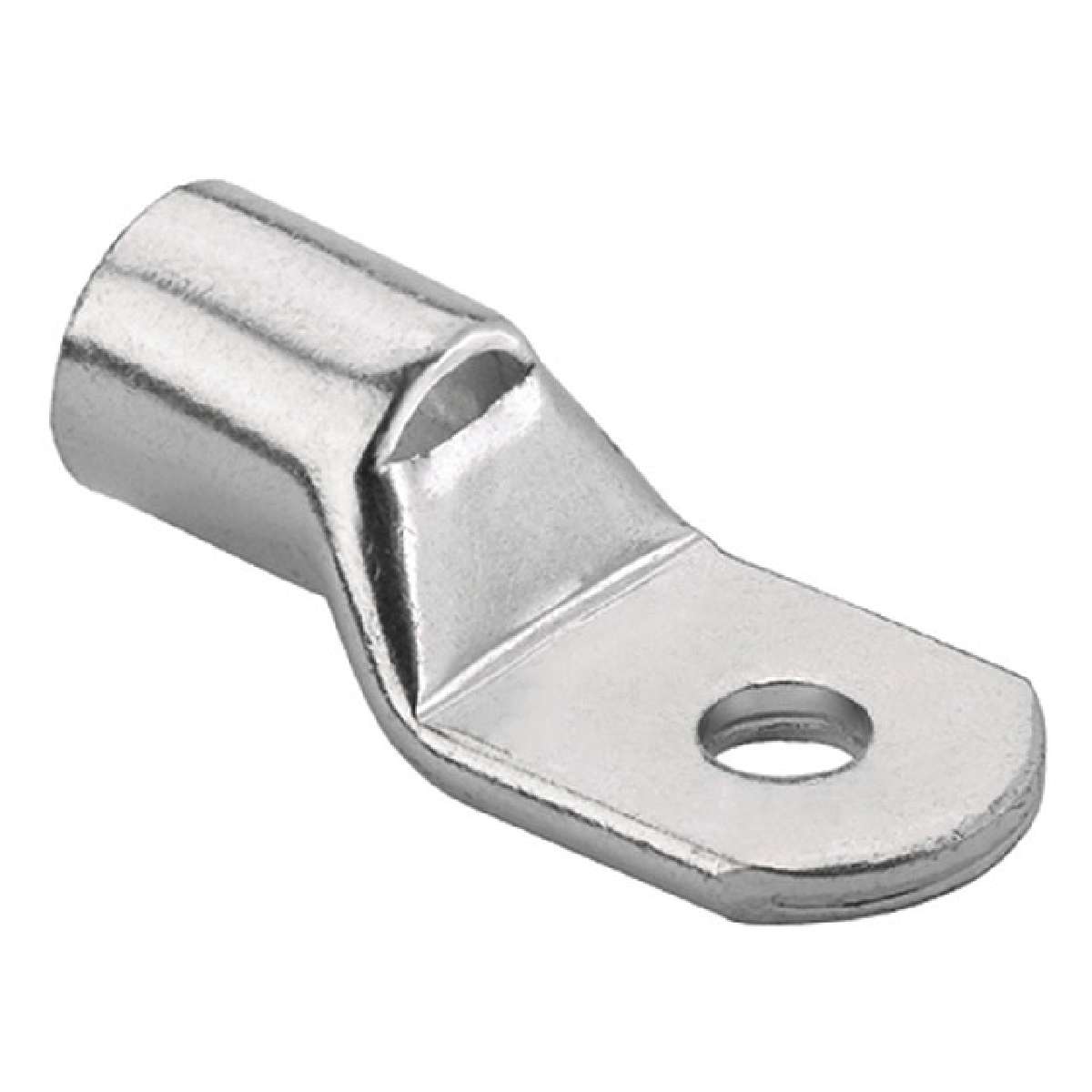

LCMA25-6-C图片7
LCMA25-6-C概述

端子 Copper Comp Metric Lug, 1 Hole, 2

端子 - 矩形 管状环 25mm² M6 接线柱


得捷:
CONN TERM RECT RING 25MM #M6


贸泽:
端子 Copper Comp Metric Lug, 1 Hole, 2


艾睿:
The lug terminal LCMA25-6-C wire terminal from Panduit makes it simple to connect to your terminals. This product is 30.8 mm long and 14 mm. Its wire is 25 AWG.


Verical:
Lug Terminal 25AWG Copper 30.8mm Tin


MASTER:
One-hole, metric conductor, standard barrel with window lug, 25mm² wire, M6 stud hole.


Electro Sonic:
One-hole, metric conductor, standard barrel with window lug, 25mm² wire, M6 stud hole.


Win Source:
CONN TERM RECT RING 25MM #M6 / Ring Terminal Connector M6 Stud Flat Sided, Tubular Battery Lugs 25mm² Crimp


LCMA25-6-C中文资料参数规格
技术参数

线规 25 mm²

工作温度Max 90 ℃

额定电压Max 35000 V

外形尺寸

长度 37.00 mm

宽度 14 mm

物理参数

触点材质 Copper

材质 Copper

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买LCMA25-6-C
型号: LCMA25-6-C
制造商: Panduit 泛达
描述:端子 Copper Comp Metric Lug, 1 Hole, 2
