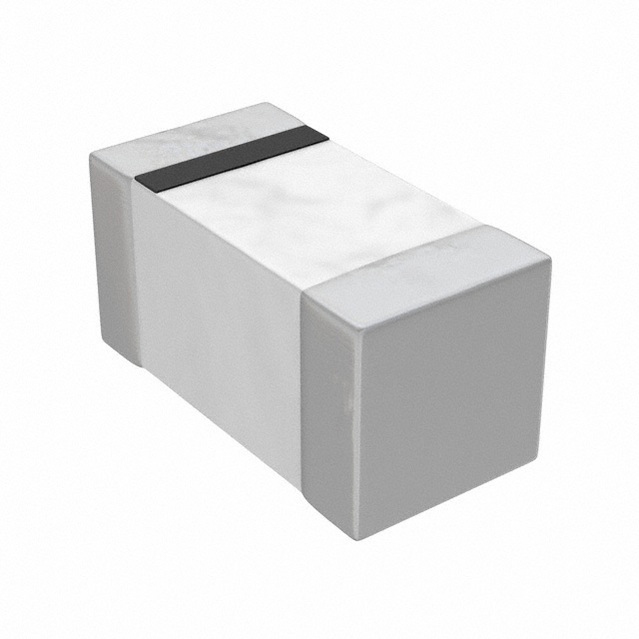

LL1608-FSL6N8J

Toko 0603 LL1608-FHL Series Multilayer Ceramic InductorsHighly reliable Multilayer SMD Inductor with a Dual frequency standard per inductance value, plated terminals, integrated ceramic structure and tight physical tolerance dimensions ±0.05mm. Supports high temperature reflow soldering 260°C, 3 times and flow soldering Expanding operating temperature range -55°C ∼ +125°C Extended applicable frequency range ∼ 10GHz ### SMT 0603 电感器（扼流圈）

值Inductance| 6.8nH \---|--- 误差Tolerance| ±5% 额定电流Current Rating| 600mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 67.5 @ 1.8GHZ 自振谐频率SRFFrequency - Self Resonant| 4.7GHz DC电阻DCRDC Resistance DCR| 0.22Ω/Ohm 屏蔽Shielding| 无屏蔽 Unshielded Description & Applications| Multilayer Chip Inductors  Guaranteed S.R.F range SRF tolerance: 15%  Dual frequency standard for inductance value  Supports high temperature reflow soldering 260°C, 3 times  Surface mounting applicability Supports both reflow and flow soldering  High reliability ceramic integrated structure, and terminals plated  RoHS compliant 描述与应用| 叠层片式电感器 保证的SRF的范围（SRF公差：15％） 双频率标准电感值 支持高温回流焊接（260℃，3次） 表面安装适用性（支持回流和波峰焊接） 高可靠性（陶瓷一体化结构，终端镀金） 符合RoHS标准
