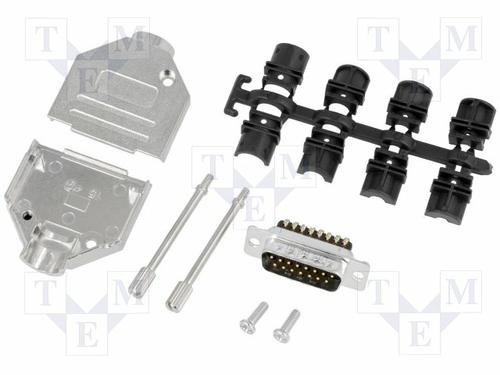

AMPHENOL L717DA15PST3 连接器, D sub, 堆叠式, D-ST系列, DA, 插头, 15 触点, 金属主体, 螺丝
The D-ST series Screw termination D-sub Connectors designed for field applications, permits easy wiring without any specific tool, due to their reduced overall dimensions these connectors are compatible with all standard hoods and accessories. It has machined brass for plug full gold, machined bronze for socket full gold, glass-filled thermoplastic insulator and steel with tin plated shell.
- .
- Available in plug and socket connectors
- .
- Positions 9, 15, 25 and 37
- .
- UL94V-0 Flammability
- .
- >5000MR Insulation resistance
- .
- <5mR Contact resistance
- .
- 7.5A Current rating maximum
- .
- -55 to 85°C Temperature range
触点数 15
极性 Male
线规 18 AWG
触点电镀 Gold over Nickel
额定电压AC 300 V
额定电流 7.5 A
绝缘电阻 5000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 15
接触电阻 5.00 mΩ
拔插次数 100
额定电流Max 7.5 A
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 300 VAC
额定电压 300 V
接触电阻Max 5 mΩ
安装方式 Screw
引脚数 15
封装 Metal
长度 39 mm
高度 12.4 mm
封装 Metal
颜色 Black
触点材质 Brass
材质 Steel
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Computers & Computer Peripherals, Safety, Building Automation, Industrial, HVAC, 工业, 安全, 自动化与过程控制, 通信与网络, 照明, Automation & Process Control, Lighting, Communications & Networking, 建筑自动化, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2010/12/15
