LED, 暖白色, 90 CRI指数, 116 lm/W, 1200 lm, 300 mA, 115°, 3000 K, SMD-2, 平顶圆形

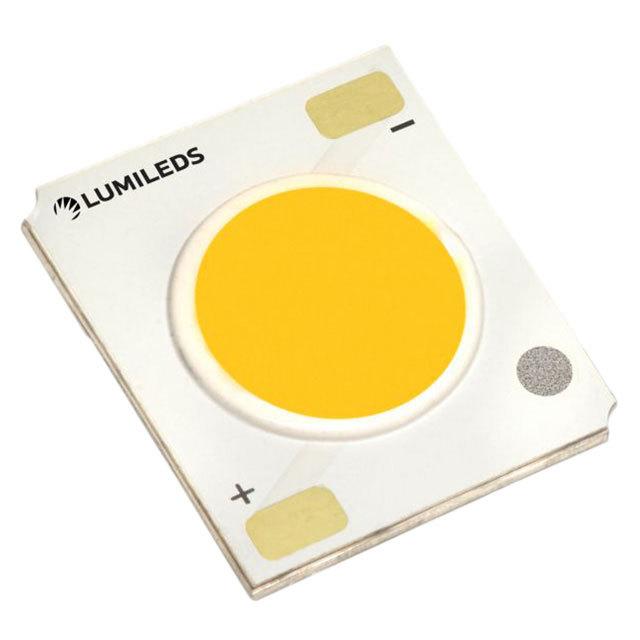

The from is a L2C5 series LUXEON CoB with CrispColor Technology™ . The fashion retail lighting that makes an impact, highlighting rich colours and increasing contrast. Advantages of LUXEON CoB range including lowest Rth, highest flux densities with industry"s smallest Light Emitting Surface LES and 3-step MacAdam ellipse colour definition freedom from binning for colour consistency from luminaire to luminaire which is tested at 85°C, up to 4x lower thermal resistance than competition, enabling smaller heatsinks and higher lumens. It is supported by a comprehensive optical, mechanical and electrical ecosystem. It is widely used in downlights, indoor area lighting, lamps and spotlights.
正向电压 34.5 V
视角 115°
测试电流 300 mA
正向电流 300 mA
正向电流Max 600 mA
工作温度Max 105 ℃
工作温度Min 40 ℃
安装方式 Surface Mount
引脚数 2
封装 Chip-on-Board
长度 19 mm
宽度 16 mm
高度 1.5 mm
封装 Chip-on-Board
颜色 White
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tube
制造应用 发光二极管照明
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L2C5-30901203E0900 Lumileds | 当前型号 | 当前型号 |
LHC1-3090-1203 Lumileds | 功能相似 | L2C5-30901203E0900和LHC1-3090-1203的区别 |
