COILCRAFT LPR6235-752SMLC 脉冲变压器, 7.5uH, 1:100
The is a Transformer Pulse, can be used as step-up or flyback transformers in DC-DC converters or as autotransformers. Perfect for low voltage step-up in energy harvesting applications. Selected by Linear Technology for the LTC3108 and LTC3109 ultralow voltage step-up converter and power managers. The high Isat and low DC resistance ratings of these parts provide high efficiency and excellent current handling in a rugged design.
- .
- 1:100 Turns ratio
- .
- -40 to 85°C Operating temperature
额定电流 1.6 A
电感 7.5 µH
产品系列 lpr6235
电感公差 ±20 %
电阻DC） 0.085 Ω

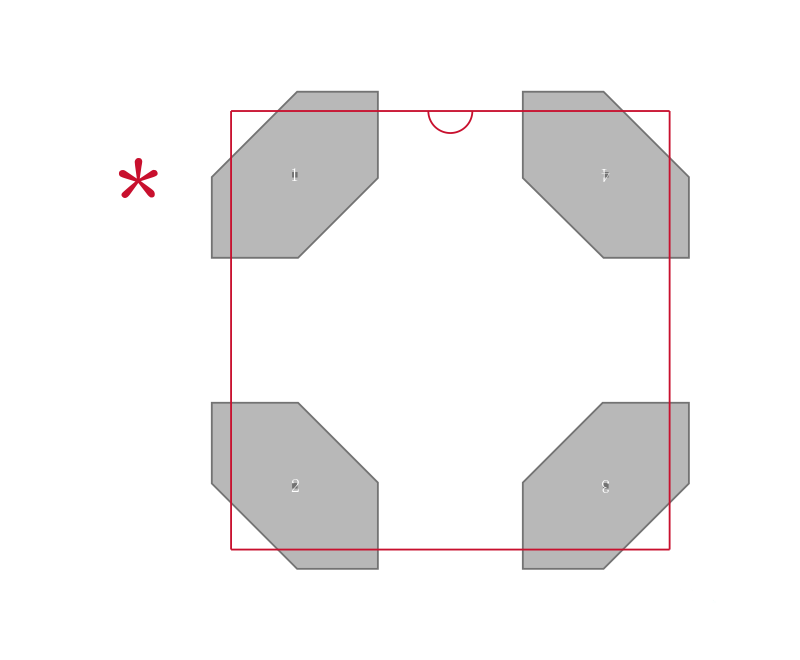

安装方式 Surface Mount

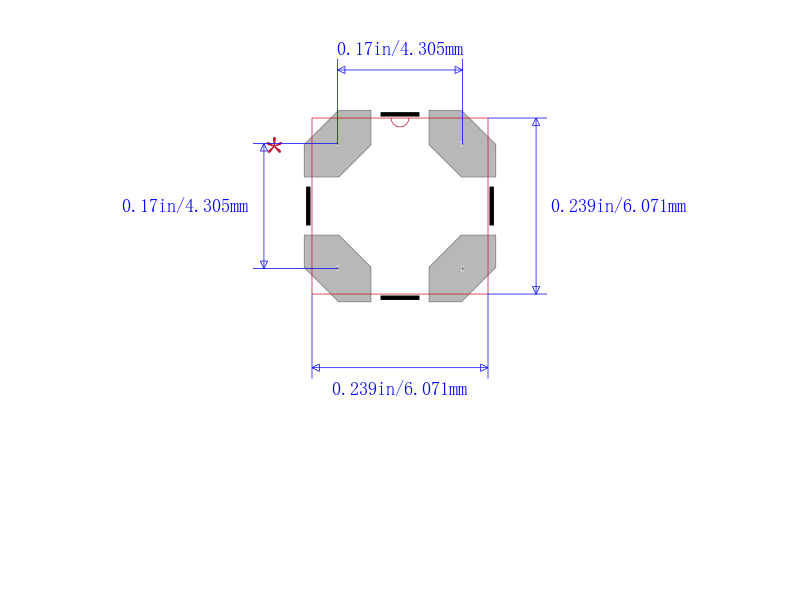

封装 6mm x 6mm x 3.5mm
长度 6 mm
宽度 6 mm
高度 3.5 mm
封装 6mm x 6mm x 3.5mm
工作温度 40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LPR6235-752SMLC Coilcraft 线艺 | 当前型号 | 当前型号 |
LPR6235-752SMRB 线艺 | 完全替代 | LPR6235-752SMLC和LPR6235-752SMRB的区别 |
