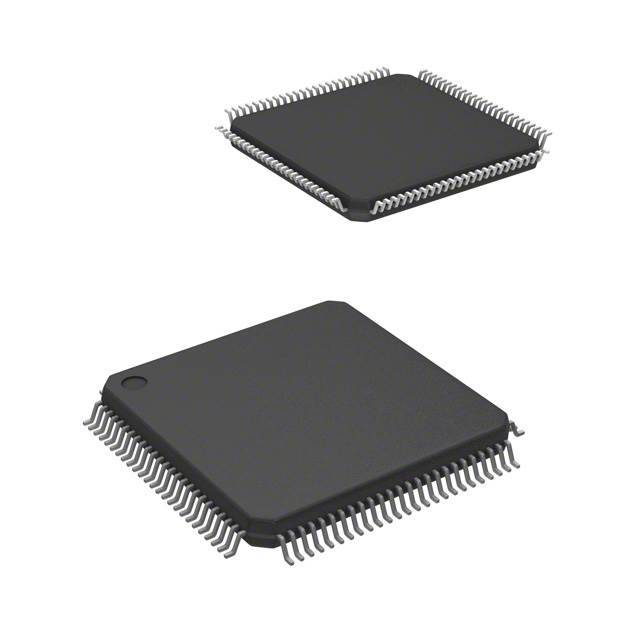

LPC2364HBD100,551图片1

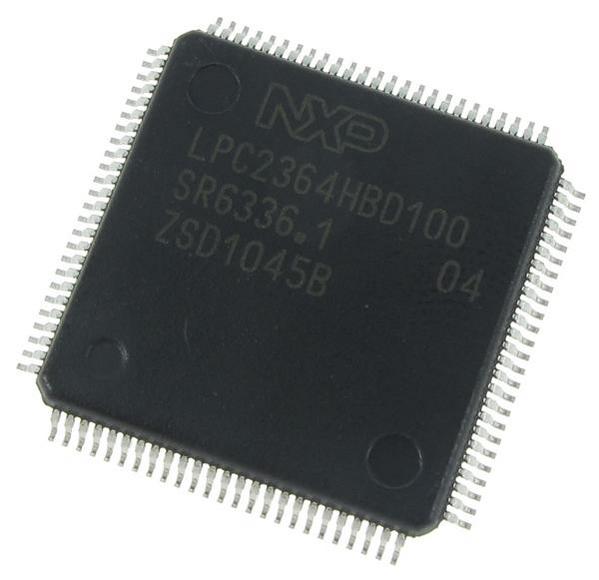

LPC2364HBD100,551图片2

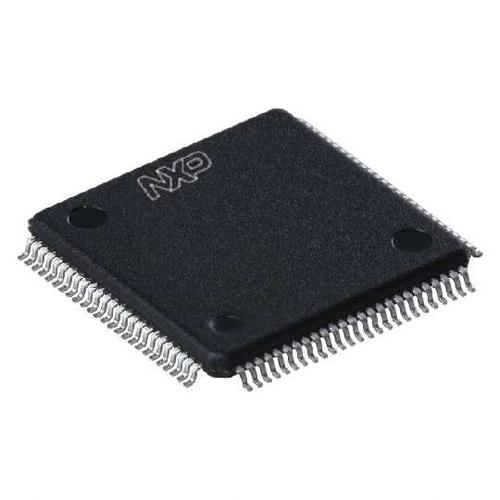

LPC2364HBD100,551图片3

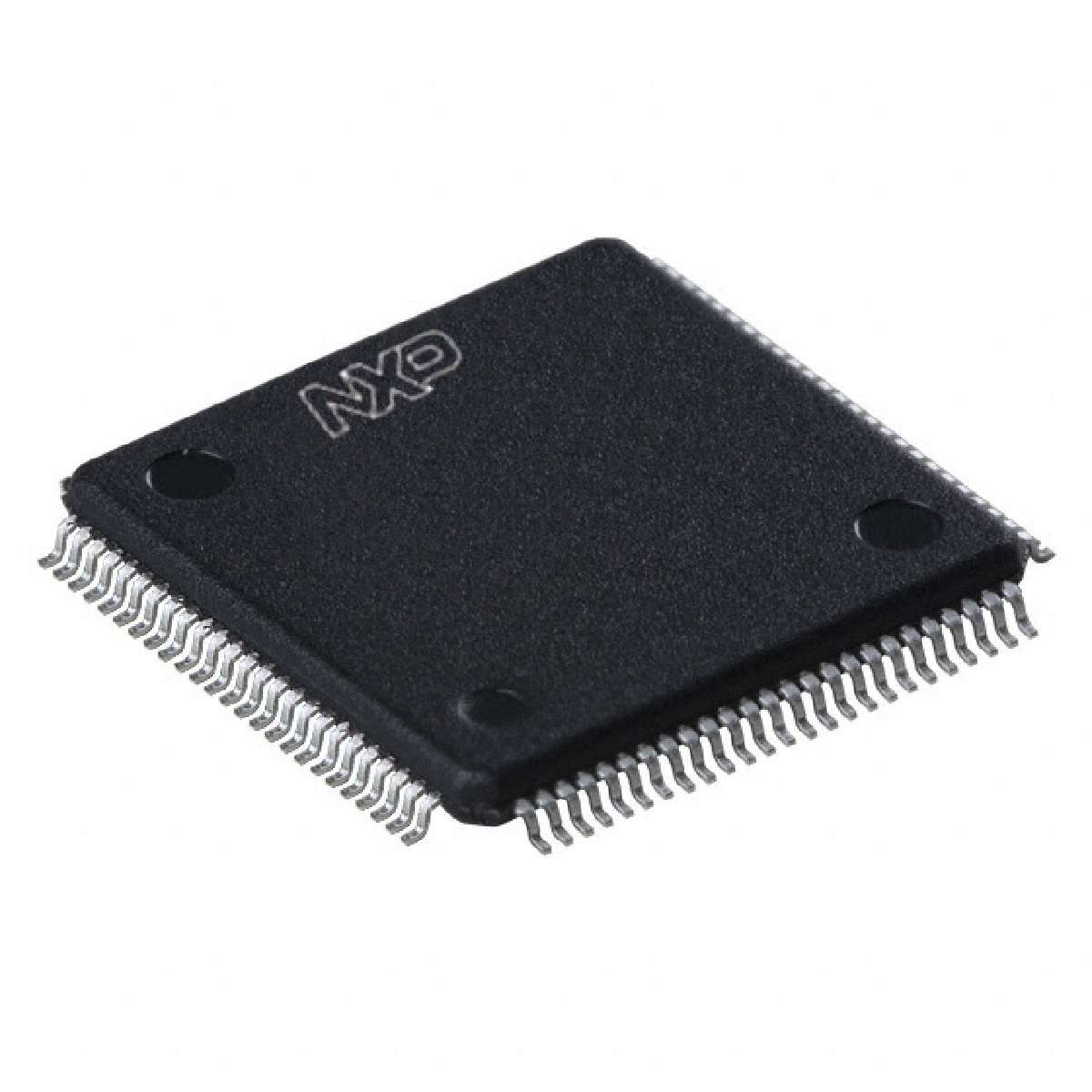

LPC2364HBD100,551图片4
LPC2364HBD100,551图片5
LPC2364HBD100,551图片6
LPC2364HBD100,551图片7
LPC2364HBD100,551图片8
LPC2364HBD100,551图片9
LPC2364HBD100,551图片10
LPC2364HBD100,551图片11
LPC2364HBD100,551图片12
LPC2364HBD100,551图片13
LPC2364HBD100,551概述

NXP  LPC2364HBD100,551  微控制器, 32位, ARM7TDMI, 72 MHz, 128 KB, 34 KB, 100 引脚, LQFP

The is a 16-/32-bit Microcontroller based on ARM7TDMI-S core with RISC architecture operates at a maximum frequency of 72MHz. A 128-bit wide memory interface and an unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical performance in interrupt service routines and DSP algorithms, this increases performance up to 30 % over Thumb mode. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty. The device incorporates 128kB internal flash, 34kB internal RAM, 8-channel 10-bit A/D converter, 10-bit D/A converter, an Ethernet, four 32-bit timers and real-time clock RTC and 70 general-purpose I/O pins. This device also features peripherals like four UARTs, three inter-integrated circuit I2C, one serial peripheral interface SPI modules and one integrated interchip sound I2S.

.
Dual Advanced high-performance bus AHB system
.
Advanced vectored interrupt controller VIC
.
General purpose DMA controller GPDMA
.
Ethernet MAC with associated DMA controller
.
USB 2.0 full-speed device with on-chip PHY and associated DMA controller
.
CAN controller with two channels
.
SD/MMC memory card interface
.
70 General purpose I/O pins with configurable pull-up/down resistors
.
PWM/timer block with support for three-phase motor control
.
Real-time clock RTC with separate power pin
.
2KB SRAM powered from the RTC power pin
.
Watchdog timer WDT
.
Standard ARM test/debug interface for compatibility with existing tools
.
Emulation trace module supports real-time trace
.
Four reduced power modes - Idle, sleep, power-down and deep power-down
.
Processor wake-up from power-down mode via any interrupt able to operate during power-down mode
.
Two independent power domains allow fine tuning of power consumption based on needed features
.
Each peripheral has its own clock divider for further power saving
.
Brownout detect with separate thresholds for interrupt and forced reset
.
On-chip power-on reset
LPC2364HBD100,551中文资料参数规格
技术参数

频率 72 MHz

电源电压DC 3.00V min

针脚数 100

时钟频率 72.0 MHz

RAM大小 34 KB

位数 32

耗散功率 1500 mW

FLASH内存容量 128 kB

模数转换数ADC 1

输入/输出数 70 Input

工作温度Max 125 ℃

工作温度Min -40 ℃

耗散功率Max 1500 mW

数模转换数DAC 1

电源电压 3V ~ 3.6V

电源电压Max 3.6 V

电源电压Min 3 V

封装参数

引脚数 100

封装 LQFP-100

外形尺寸

封装 LQFP-100

物理参数

重量 730.1795810607999 mg

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tray

制造应用 工业, Communications & Networking, Industrial, Medical, 通信与网络, Automation & Process Control, 医用, 自动化与过程控制

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买LPC2364HBD100,551
型号: LPC2364HBD100,551
制造商: NXP 恩智浦
描述:NXP  LPC2364HBD100,551  微控制器, 32位, ARM7TDMI, 72 MHz, 128 KB, 34 KB, 100 引脚, LQFP
