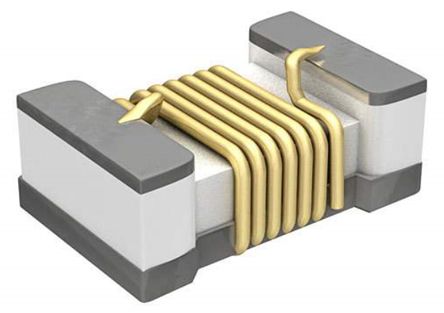

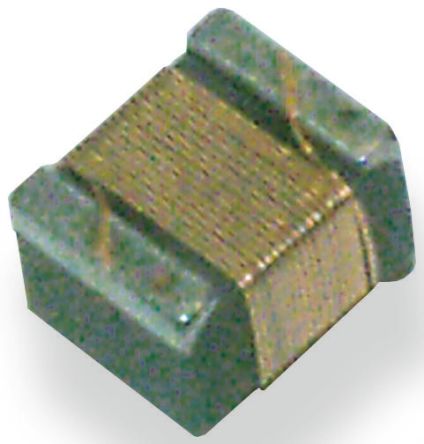

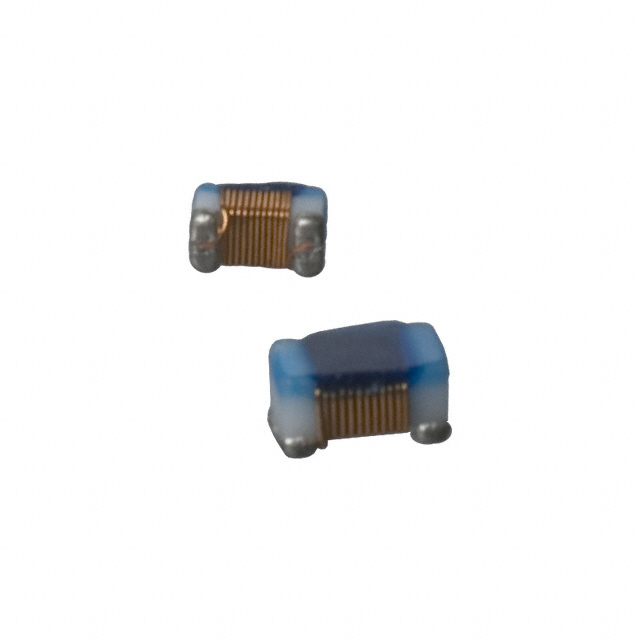

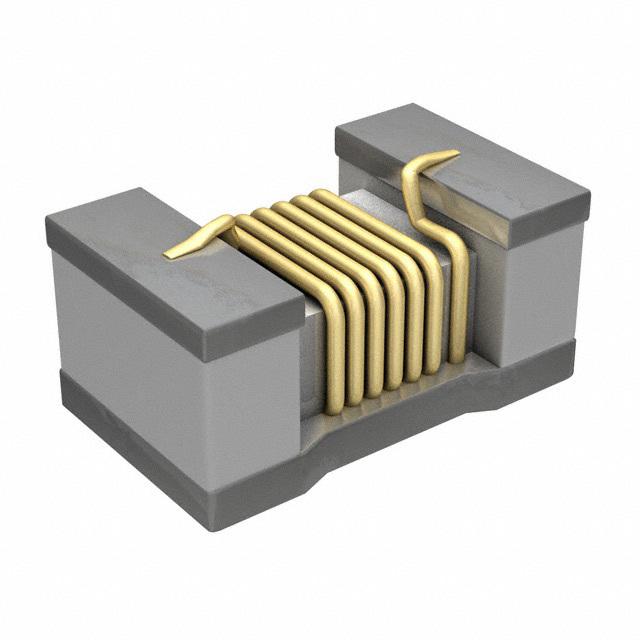

LQW15AN43NJ00D

MURATA  LQW15AN43NJ00D  表面贴装高频电感器, LQW15AN系列, 43 nH, ± 5%, 0402 [1005 公制], 3 GHz, 0.7 ohm

固定器

得捷:
FIXED IND 43NH 250MA 700MOHM SMD

欧时:
Murata LQW15A 系列 铁氧体芯材 43 nH 绕线贴片电感器 LQW15AN43NJ00D, ±5%容差, 250mA Idc Q:25

立创商城:
43nH ±5% 700mΩ

e络盟:
高频电感器, 43 nH, LQW15AN系列, 250 mA, 0402 [1005 公制], 非屏蔽, 0.7 ohm

艾睿:
This rf chip LQW15AN43NJ00D surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 3G Hz. It has an inductance of 43n H. This SMD inductor has a maximum DC current of 250m A with a maximum resistance of 700m Ohm. This product is 1.1 mm long, 0.6 mm tall and 0.6 mm deep. It has a tolerance of 5%. This device utilizes wirewound technology.

安富利:
Ind RF Chip Wirewound 43nH 5% 100MHz 25Q-Factor 250mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 43nH 5% 100MHz 25Q-Factor 250mA 700mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.043uH 5% 100MHz 25Q-Factor Non Magnetic 0.25A 0.7Ohm DCR 0402 T/R

Newark:
# MURATA  LQW15AN43NJ00D  Surface Mount High Frequency Inductor, LQW15AN Series, 43 nH, 5%, 0402 [1005 Metric], 3 GHz

儒卓力:
**LQW15A 43nH 250mA 5% WWT **
