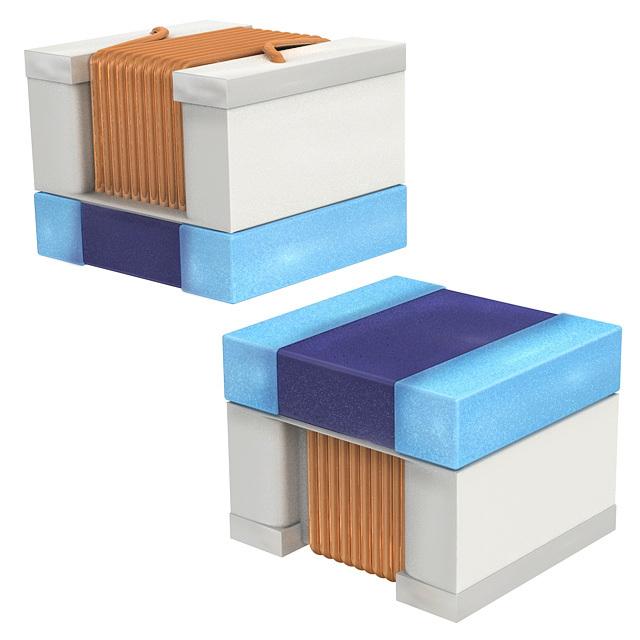

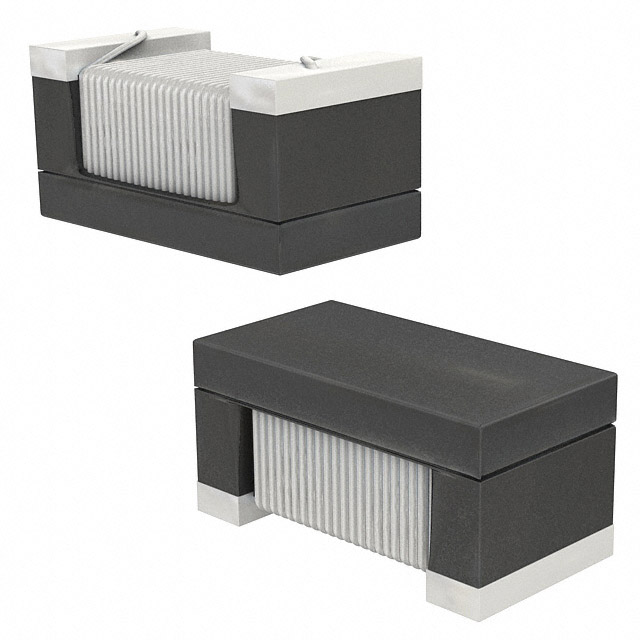

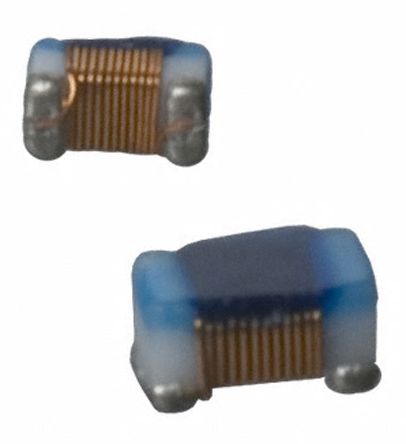

LQW2BAS12NJ00L

LQW21AS 系列 SMD 片状电感器Murata LQW 系列线绕射频电感器包括一个高 Q 值，为过滤器通频带内部提供极佳衰减特性。 这些 LQW 电感器用于匹配天线应用，以便保持天线接收和传输灵敏度。 LQW 具有低直流电阻特性，可部署在具有高电流级别流的扼流电路中。### 特点提供两种类型的结构，用于不同的应用 高 Q 值 可支持大电流 低直流电阻抗 ### Murata 非标准表面安装电感器（扼流圈）

LQW21AS 系列 SMD 片状器

Murata LQW 系列线绕射频电感器包括一个高 Q 值，为过滤器通频带内部提供极佳衰减特性。 这些 LQW 电感器用于匹配天线应用，以便保持天线接收和传输灵敏度。 LQW 具有低直流电阻特性，可部署在具有高电流级别流的扼流电路中。

### 特点

提供两种类型的结构，用于不同的应用

高 Q 值

可支持大电流

低直流电阻抗

### Murata 非标准表面安装电感器（扼流圈）

得捷:
FIXED IND 12NH 600MA 150MOHM SMD

立创商城:
12nH ±5% 150mΩ

欧时:
Murata LQW2BAS_00 系列 非磁核心芯材 12 nH 绕线贴片电感器 LQW2BAS12NJ00L, ±5%容差, 600mA Idc Q:50

贸泽:
固定电感器 0805, 12nH , 600mA SRF 4000MHz, 5%

e络盟:
The LQW series from Murata are wire wound inductors used for general purpose applications. These inductors with high Q values are mainly used in matching circuits of RF units for excellent attenuation characteristics in band pass filters. They are also used in the matching applications of antennas for maintaining transmission and reception sensitivity. Innovative coil and case structures provide low Rdc characteristics.

艾睿:
This rf chip LQW2BAS12NJ00L surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 12n H. This device is made with wirewound technology. This product is 2.29 mm long, 1.52 mm tall and 1.73 mm deep. It has a tolerance of 5%. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 4G Hz. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 150m Ohm.

安富利:
Ind RF Chip Wirewound 12nH 5% 250MHz 50Q-Factor 600mA 0805 Embossed T/R

Chip1Stop:
Inductor RF Chip Wirewound 12nH 5% 250MHz 50Q-Factor 600mA 150mOhm DCR 0805 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.012uH 5% 250MHz 50Q-Factor Non Magnetic 0.6A 0.15Ohm DCR 0805 T/R
