LT3081HT7#PBF

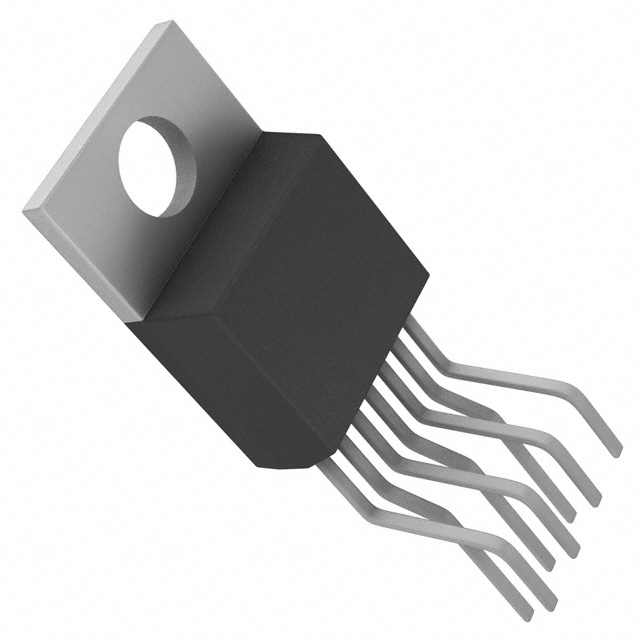

LINEAR TECHNOLOGY  LT3081HT7#PBF  电压稳压器, LDO, 可调, 1.2V至36V输入, 1.23V压差, 0V至34.5V/1.5A输出, TO-220-7

The is a low-dropout Linear Regulator designed for rugged industrial applications. Key features of the IC are the extended safe operating area SOA, output current monitor, temperature monitor and programmable current limit. It can be paralleled for higher output current or heat spreading. The device withstands reverse input and reverses output-to-input voltages without reverse current flow. The LT3081 precision 50µA reference current source allows a single resistor to program output voltage to any level between zero and 34.5V. The current reference architecture makes load regulation independent of output voltage. It is stable with or without input and output capacitors. The output current monitor and die junction temperature output provide system monitoring and debug capability. In addition, a single resistor programs current limit. Internal protection circuitry includes reverse-battery and reverse-current protection, current limiting and thermal limiting.

.

Extended safe operating area

.

Single resistor sets output voltage

.

Parallel multiple devices for higher current or heat spreading

.

Programmable current limit

.

Reverse-battery and reverse-current protection

.

IMON = IOUT/5000 Output current monitor

.

1µA/°C Junction temperature monitor

.

50µA SET pin current - 1% Initial accuracy

.

<1mV Load regulation independent of VOUT

.

<0.001%/V Line regulation
