LQW18CN15NJ00D

MURATA  LQW18CN15NJ00D  表面贴装高频电感器, LQW18A_00系列, 15 nH, ± 5%, 0603 [1608 公制], 2 GHz, 0.025 ohm

LQW18CN 系列 SMD 片状器

Murata LQW 系列线绕射频电感器包括一个高 Q 值，为过滤器通频带内部提供极佳衰减特性。 这些 LQW 电感器用于匹配天线应用，以便保持天线接收和传输灵敏度。 LQW 具有低直流电阻特性，可部署在具有高电流级别流的扼流电路中。

### 特点

提供两种类型的结构，用于不同的应用

高 Q 值

可支持大电流

低直流电阻抗

立创商城:
15nH ±5% 25mΩ

得捷:
FIXED IND 15NH 2.2A 25 MOHM SMD

欧时:
Murata LQW18CN_00 系列 铁氧体芯材 15 nH 绕线贴片电感器 LQW18CN15NJ00D, ±5%容差, 2.2A Idc

e络盟:
# MURATA  LQW18CN15NJ00D  表面贴装高频电感器, LQW18A_00系列, 15 nH, ± 5%, 0603 [1608 公制], 2 GHz, 0.025 ohm

艾睿:

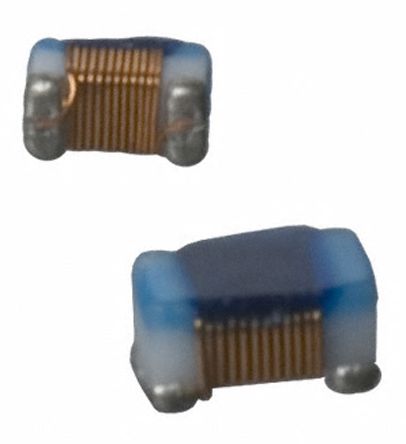

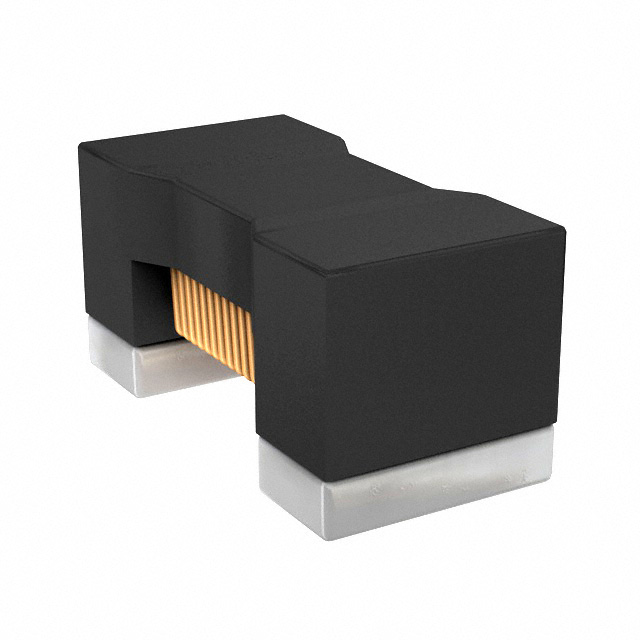

This power chip LQW18CN15NJ00D surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device is made with wirewound technology. It has an inductance of 15n H. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep. Its test frequency is 10M Hz, while its minimum self-resonant frequency is 2G Hz. This SMD inductor has a maximum DC current of 2.2 A with a maximum resistance of 25m Ohm. It has a tolerance of 5%.

Chip1Stop:
Inductor Power Chip Unshielded Wirewound 15nH 5% 10MHz Ferrite 2.2A 25mOhm DCR 0603 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.015uH 5% 10MHz Ferrite 2.2A 0.025Ohm DCR 0603 T/R

儒卓力:
**LQW18CN 0,015uH 2200mA 5% **
