AC-DC Power Supply Triple-OUT 5V/12V/-12V 5A/2.5A/0.5A 61W 13Pin
Switching Power Supply, 85 to 264 VAC Input Voltage, Multiple Output
Designed for Low Profile and Low Cost.
* Low Profile Lightweight PC Board Construction, Low Cost
* High Quality — Field Failure Rate Less than 0.012%
* Universal Input: AC 85~264
* Inrush Current, Over-Voltage and Over-Current Protection Circuitry
* Fully Regulated, Fully Isolated Input/Output, V1 Isolated From V2 and V3
* Zero Minimum Load

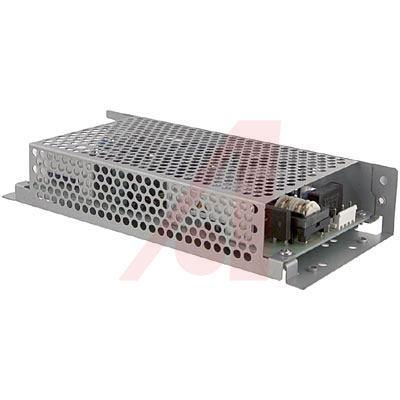

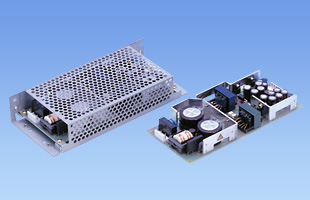

* Available with Chassis and Cover Option SN Option
* Also Available with ±10% Voltage Adjustable Output Potentiometer
Y Option
* Conductive Noise: FCC-B, VCCI-2 and VFG 243/91
* UL, CSA and TÜV Safety Approvals, CE Marked
* Two-Year Warranty
* Wiring Harnesses Available on Bottom of Page
