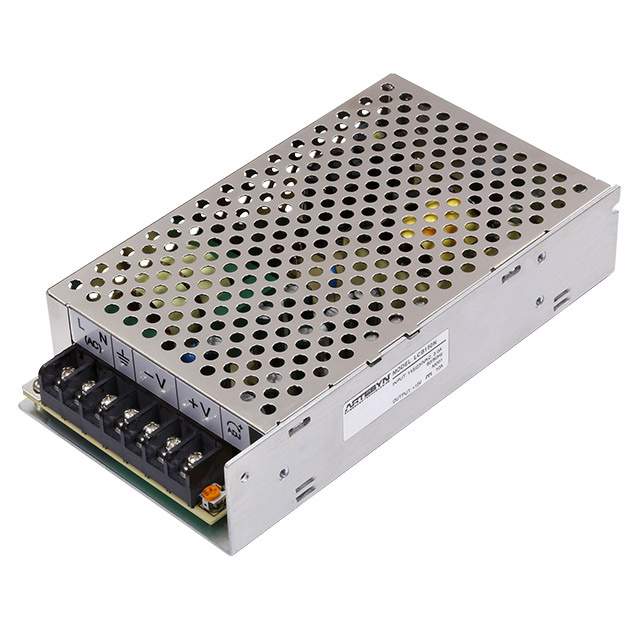

ARTESYN EMBEDDED TECHNOLOGIES LCB150W AC-DC Enclosed Power Supply, Adjustable, Fixed, 1Outputs, 88V, 264V, 158.4W, 48V
This AC to DC power supply from Artesyn Embedded Power safely converts alternating currents into direct currents that your electronic devices can make use of. It has a voltage of 48 V and maximum output power of 158.4 W. This part"s single output can handle a current up to 3.3 A. This part has a minimum operating temperature of -25 °C and a maximum of 70 °C.
得捷:
AC/DC CONVERTER 48V 150W
艾睿:
AC/DC Power Supply Single-OUT 48V 3.3A 158.4W 7-Pin
安富利:
48V @ 158W, 3.86" X 1.5" X 7"
Verical:
AC/DC Power Supply Single-OUT 48V 3.3A 158.4W 7-Pin
Newark:
# ARTESYN EMBEDDED TECHNOLOGIES LCB150W AC/DC Enclosed Power Supply, Adjustable, Fixed, 1 Outputs, 88 V, 264 V, 158.4 W, 48 V
额定功率 150 W
输出接口数 1
输出电压 48 V
输出电流 3.3 A
输出功率 158.4 W
隔离电压 3 kV
输入电压DC Max 373 V
输入电压DC Min 248 V
输入电压AC Max 264 v
输入电压AC Min 88 v
输出电流Max 3.3 A
输入电流Min 3 A
输出功率Max 158.4 W
工作温度Max 70 ℃
工作温度Min -25 ℃
输入电压 90VAC ~ 264VAC
安装方式 Chassis
引脚数 7
高度 38 mm
工作温度 -25℃ ~ 70℃
产品生命周期 Obsolete
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
