LT300014T261K0J概述
RESISTOR, TEMPERATURE DEPENDENT, PTC, 1000Ω, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

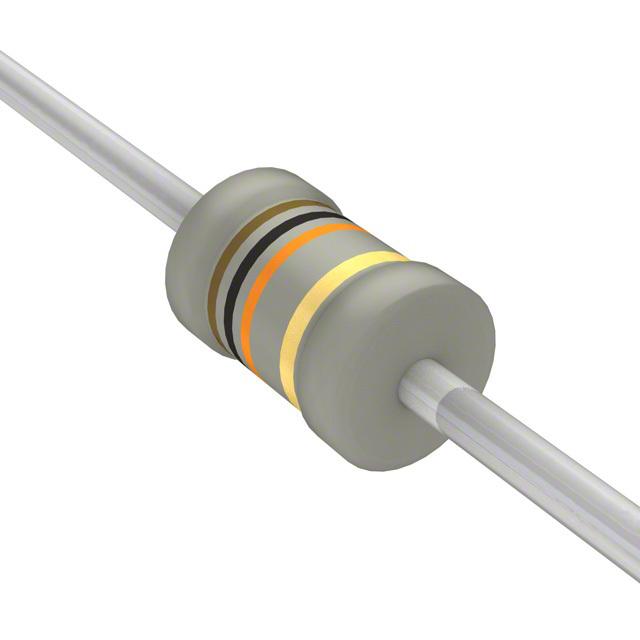

The from is a axial leaded linear PTC thermistor. The thermistor case is epoxy coated with axial leads permits automatic insertion. LT series thermistors are available in E24 grid resistance value ranging from 10 ohm to 10Kohm.
- .
- Resistance tolerance is ±5%
- .
- TCR tolerance is ±10%
- .
- Power rating is 0.25W at 70°C
- .
- Withstand voltage is 500V
- .
- Operating temperature range from -40°C to 125°C
LT300014T261K0J中文资料参数规格
技术参数
额定功率 250 mW
电阻 1 kΩ
阻值偏差 ±5 %
额定功率Max 250 mW
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压Max 500 V
封装参数
安装方式 Through Hole
引脚数 2
封装 DO-35
外形尺寸
脚长度 30.0 mm
封装 DO-35
物理参数
工作温度 -40℃ ~ 125℃
其他
产品生命周期 Active
包装方式 Bulk
制造应用 消费电子产品, Consumer Electronics, 工业, Industrial, 便携式器材, Portable Devices
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
海关信息
ECCN代码 EAR99
在线购买LT300014T261K0J
型号： LT300014T261K0J
制造商：
TE Connectivity
泰科
描述：RESISTOR, TEMPERATURE DEPENDENT, PTC, 1000Ω, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT
