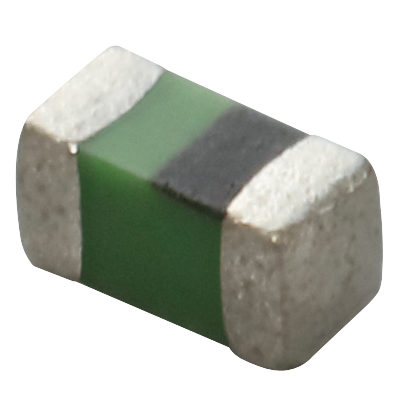

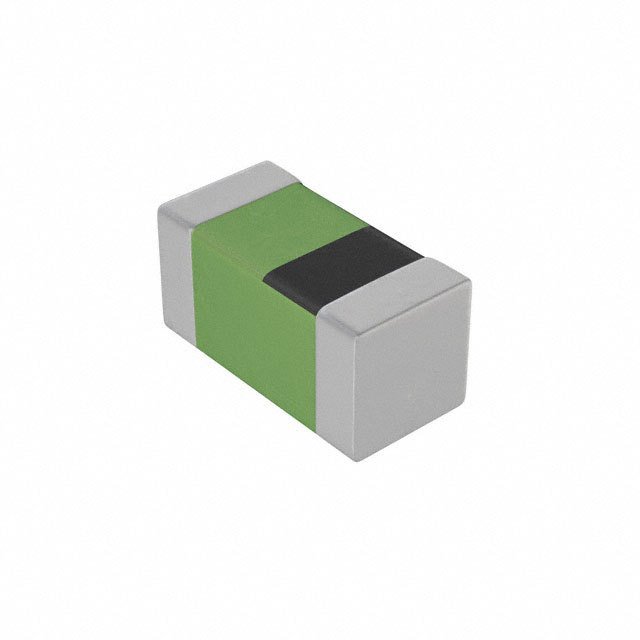

LQG15HH6N2S02D

0402 6.2nH ±0.3nH

无屏蔽 多层 器 200 毫欧最大 0402（1005 公制）

得捷:
FIXED IND 6.2NH 600MA 200MOHM SM

立创商城:
6.2nH ±0.3nH 200mΩ

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip LQG15HH6N2S02D surface mount inductor from Murata to save valuable space. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 220m Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 4.5G Hz. This device is made with multi-layer technology. It has an inductance of 6.2n H. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep.

安富利:
Ind RF Chip Multi-Layer 6.2nH 0.3nH 100MHz 8Q-Factor Air 300mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Multi-Layer 6.2nH 0.3nH 100MHz 8Q-Factor Air 300mA 220mOhm DCR 0402 Automotive Paper T/R

Verical:
Inductor RF Chip Multi-Layer 0.0062uH 0.3nH 100MHz 8Q-Factor Air 0.6A 0.2Ohm DCR 0402 Automotive T/R
