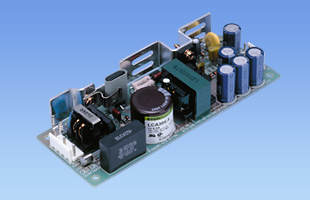

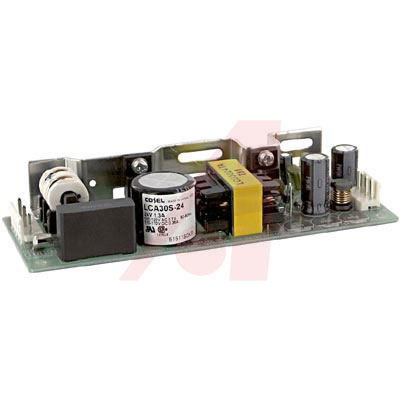

AC-DC Power Supply Single-OUT 24V 1.3A 31.2W 7Pin
47 to 440 Hz Frequency, LCA Series Single Output Switching Power Supplies
Designed for Small Size, Low Profile, High Reliability and Low Cost.
* Cost Effective, Small, Open Frame PC Board Construction
* High Quality — Field Failure Rate Less than 0.012%
* Also Available with Chassis and Cover Option on 100 and 150 Watts SN Option
* Also Available with ±10% Adjustable Output Voltage Potentiometer Y Option
* Standard Input AC 85~132
* Fully Regulated, Fully Isolated Input/Output
* Conductive Noise — Complies with FCC-B, VCCI-2 and VGF 243/91
* UL, CSA and TÜV Safety Approvals; CE Marked
* Two-Year Warranty
* Wiring Harnesses Available at the Bottom of This Page
额定功率 31.2 W
输出接口数 1
输出电压 24 VDC
输出电流 1.3 A
输入电流 700 mA
输出功率 31.2 W
隔离电压 2 kV
输入电压DC Max 170 V
输入电压DC Min 110 V
输入电压AC Max 132 V
输入电压AC Min 85 V
输入电流Min 0.7 A
工作温度Max 60 ℃
工作温度Min -10 ℃
输入电压 85VAC ~ 132VAC, 110VDC ~ 170VDC
引脚数 7
长度 132.5 mm
宽度 50 mm
高度 25 mm
工作温度 -10℃ ~ 60℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 PB free
