VCC VISUAL COMMUNICATIONS COMPANY L65DY12L PANEL INDICATOR, 8MM, RED, 12VDC 新

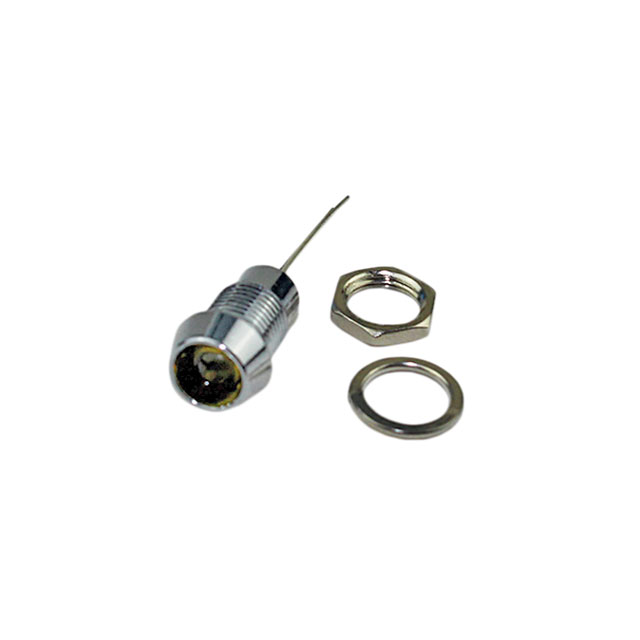

The from VCC is a L65 series 5mm LED robust panel mount indicator. It has chromium plated brass body with phenolic UL94 V-1 base and reflector designed to allow maximum light distribution with a 30° or 45° viewing angle.
-
.
-
Diffused LED type lens, high brightness LEDs for daylight viewing
-
.
-
Yellow LED illuminating colour
-
.
-
Low power consumption, recessed LED position
-
.
-
Operating voltage of 12VDC
-
.
-
Straight leads termination, front panel mounting
-
.
-
Life expectancy of 100000hr
-
.
-
High brightness LEDs for daylight viewing
-
.
-
0.315" 8mm mounting hole size, 0.196" 5mm maximum panel thickness
-
.
-
Maximum mounting torque of 5.9lbs-in 6.8Kg-cm
-
.
-
Operating temperature range from -25°C to +85°C -13°F to +185°F
