LT6700IS6-2

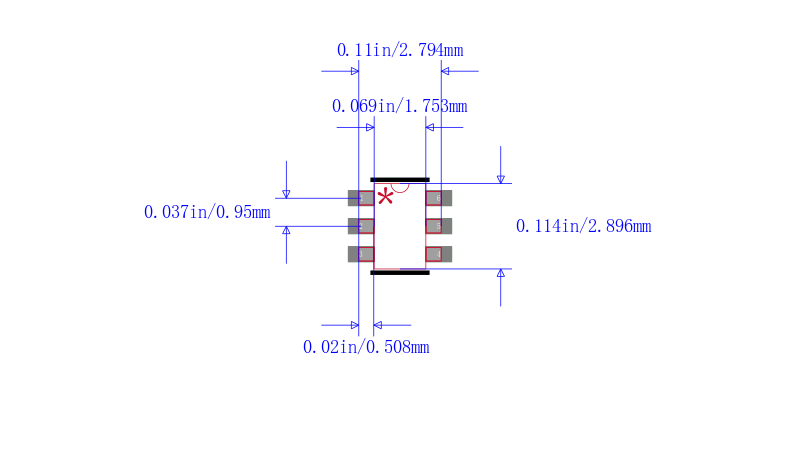

Comparator Dual 18V 6Pin TSOT-23

**Description**

The LT®6700/LT6700HV combine two micropower, low voltage comparators with a 400mV reference in a 6-lead SOT-23 or tiny DFN package. Operating with supplies from 1.4V up to 18V, these devices draw only 6.5µA, making them ideal for low voltage system monitoring. Hysteresis is included in the comparators, easing design requirements to insure stable output operation.

**Features**

**Internal 400mV Reference**

**Total Threshold Error: ±1.25% Max at 25°C**

**Inputs and Outputs Operate to 36V**

**Wide Supply Range: 1.4V to 18V**

**Specified for –55°C to 125°C Temperature Range**

Low Quiescent Current: 6.5µA Typ at 5V

Internal Hysteresis: 6.5mV Typ

Low Input Bias Current: ±10nA Max

Over-The-Top® Input also Includes Ground

Open-Collector Outputs Allow Level Translation

Choice of Input Polarities: LT6700-1/LT6700-2/LT6700-3/LT6700HV-1/LT6700HV-2/LT6700HV-3

Available in Low Profile 1mm SOT-23 ThinSOT™ and 2mm × 3mm DFN Packages

**applications**

Battery-Powered System Monitoring

Threshold Detectors

Window Comparators

Relay Driving

Industrial Control Systems

Handheld Instruments

Automotive Monitor and Controls
