DC/DC控制器, 同步降压-升压, 4.2V至55V电源, 100%占空比, 600 kHz, HTSSOP-28
The LM5176 is a synchronous four-switch buck-boost DC/DC controller capable of regulating the output voltage at, above, or below the input voltage. The LM5176 operates over a wide input voltage range of 4.2 V to 55 V 60 V absolute maximum to support a variety of applications.
The LM5176 employs current-mode control both in buck and boost modes of operation for superior load and line regulation. The switching frequency is programmed by an external resistor and can be synchronized to an external clock signal.
The device also features a programmable soft-start function and offers protection features including cycle-by-cycle current limiting, input undervoltage lockout UVLO, output overvoltage protection OVP, and thermal shutdown. In addition, the LM5176 features optional average input or output current limiting, optional spread spectrum to reduce peak EMI, and optional hiccup mode protection in sustained overload conditions.
输出接口数 1
输出电压 0.8V ~ 55V
针脚数 28
开关频率 175kHz ~ 430kHz
占空比 100 %
输入电压Max 55 V
输入电压Min 4.2 V
最大占空比 0.5
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 55 V
电源电压Min 4.2 V
引脚数 28

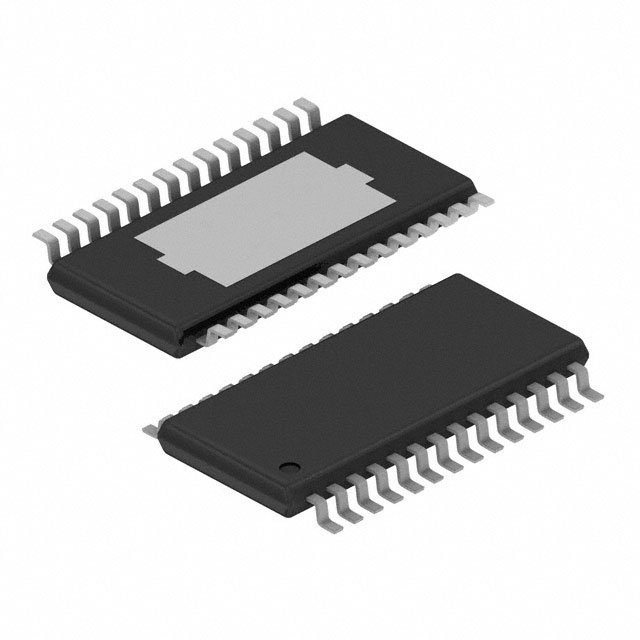

封装 HTSSOP-28
封装 HTSSOP-28
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Pre-Release
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
