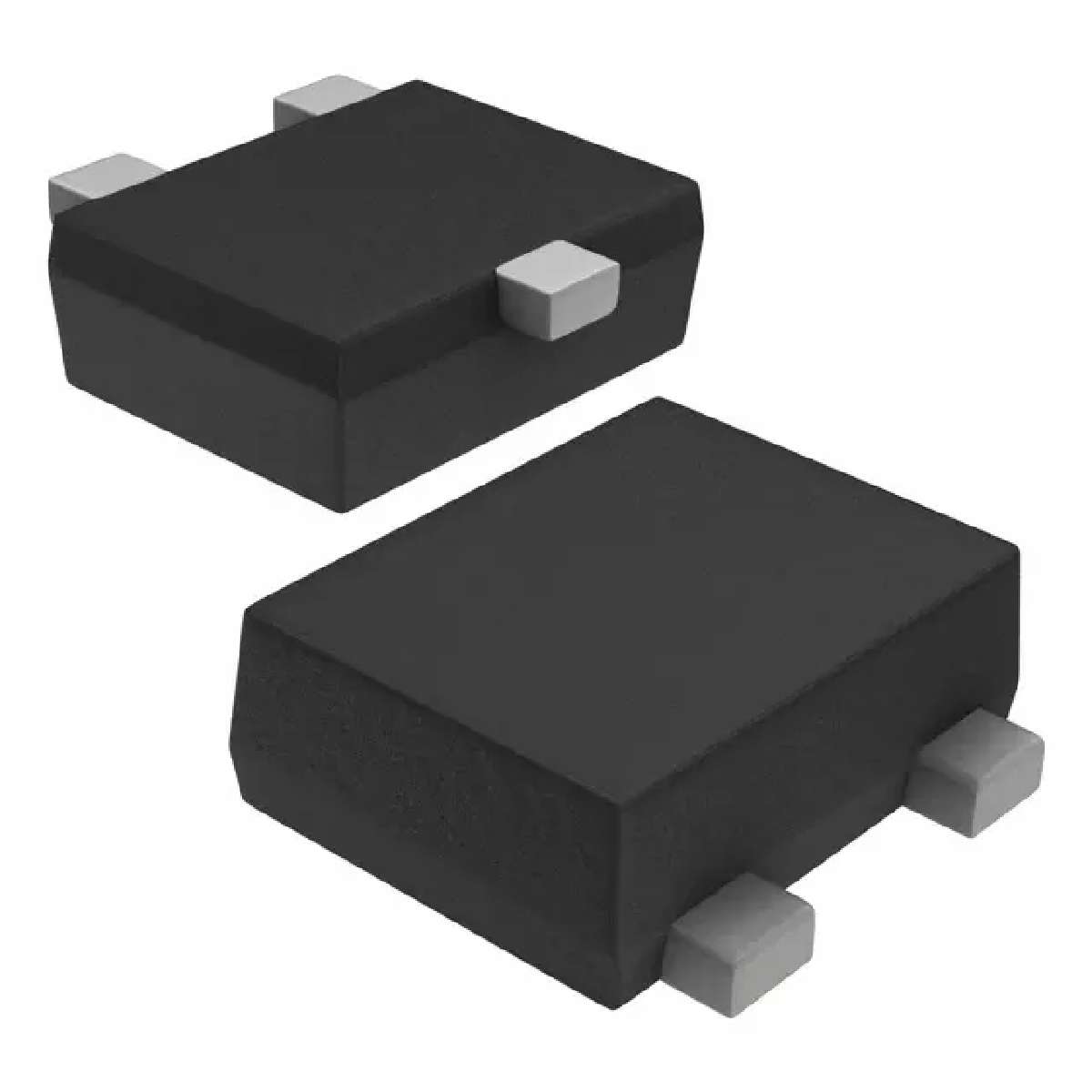

晶体管, JFET, -15 V, 16 mA, 32 mA, -1.4 V, SOT-323, JFET
* Forward Transfer Admittance is large * Ciss is small * Small package * FBET process * Halogen free compliance
得捷:
JFET N-CH 50MA SC70FL/MCPH3
立创商城:
MCH3914-7-TL-H
贸泽:
JFET NCH J-FET
e络盟:
晶体管, JFET, -15 V, 16 mA, 32 mA, -1.4 V, SOT-323, JFET
艾睿:
If your circuit requires a high level of input resistance, this MCH3914-7-TL-H JFET transistor from ON Semiconductor can provide you a solution. Its maximum power dissipation is 300 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This junction field effect transistor has an operating temperature range of -55 °C to 150 °C. It is made in a single configuration.
安富利:
Trans JFET N-CH 15V 50mA 3-Pin MCPH T/R
Chip1Stop:
Trans JFET N-CH 15V 50mA 3-Pin MCPH T/R
Win Source:
JFET N-CH 50MA 300MW SC70FL/MCPH / JFET N-Channel 50 mA 300 mW Surface Mount SC-70FL/MCPH3
无卤素状态 Halogen Free
耗散功率 300 mW
漏源极电压Vds 15 V
漏源击穿电压 15 V
输入电容Ciss 4.9pF @5VVds
额定功率Max 300 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 300 mW
安装方式 Surface Mount
引脚数 3
封装 SC-70FL
封装 SC-70FL
材质 Silicon
工作温度 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCH3914-7-TL-H ON Semiconductor 安森美 | 当前型号 | 当前型号 |
