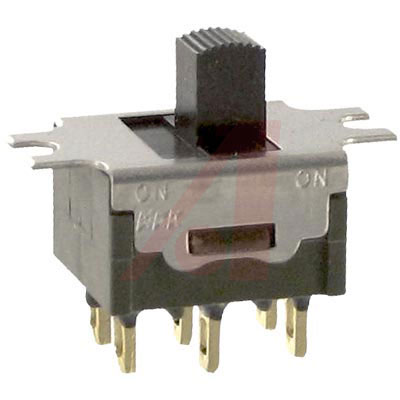

NKK SWITCHES MS22AFG01 滑动开关, DPDT, 0.1A, 28V, 面板安装
Series MS miniature slides are designed to give a choice of form factors for horizontal/vertical deployment on pcb or panel. There is also a choice between logic-level or power contacts to better match the switch to circuit applications. When matched with a logic-level or power circuit as intended, the results do not produce hazardous energy. UL, cULus and CSA recognized only when ordered with marking on the switch. Add "/U", "/CUL" or "/C" to end of part number to order UL recognized or CSA certified switch.
额定电压DC 28 V
额定电压AC 28 V
额定电流 0.1 A
绝缘电阻 ≥1000MΩ @500VDC
排数 2
方向 Vertical
触点类型 DPDT
针脚数 2
接触电阻 ≤20 MΩ
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 28 VDC
额定电压DC Max 28 V
额定电压AC Max 28 V
接触电阻Max 20 mΩ
安装方式 Panel
长度 19.6 mm
宽度 11.9 mm
高度 17.2 mm
触点材质 Copper
工作温度 -30℃ ~ 85℃
产品生命周期 50000 Cycles
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
