MSP430F5506IRGZR

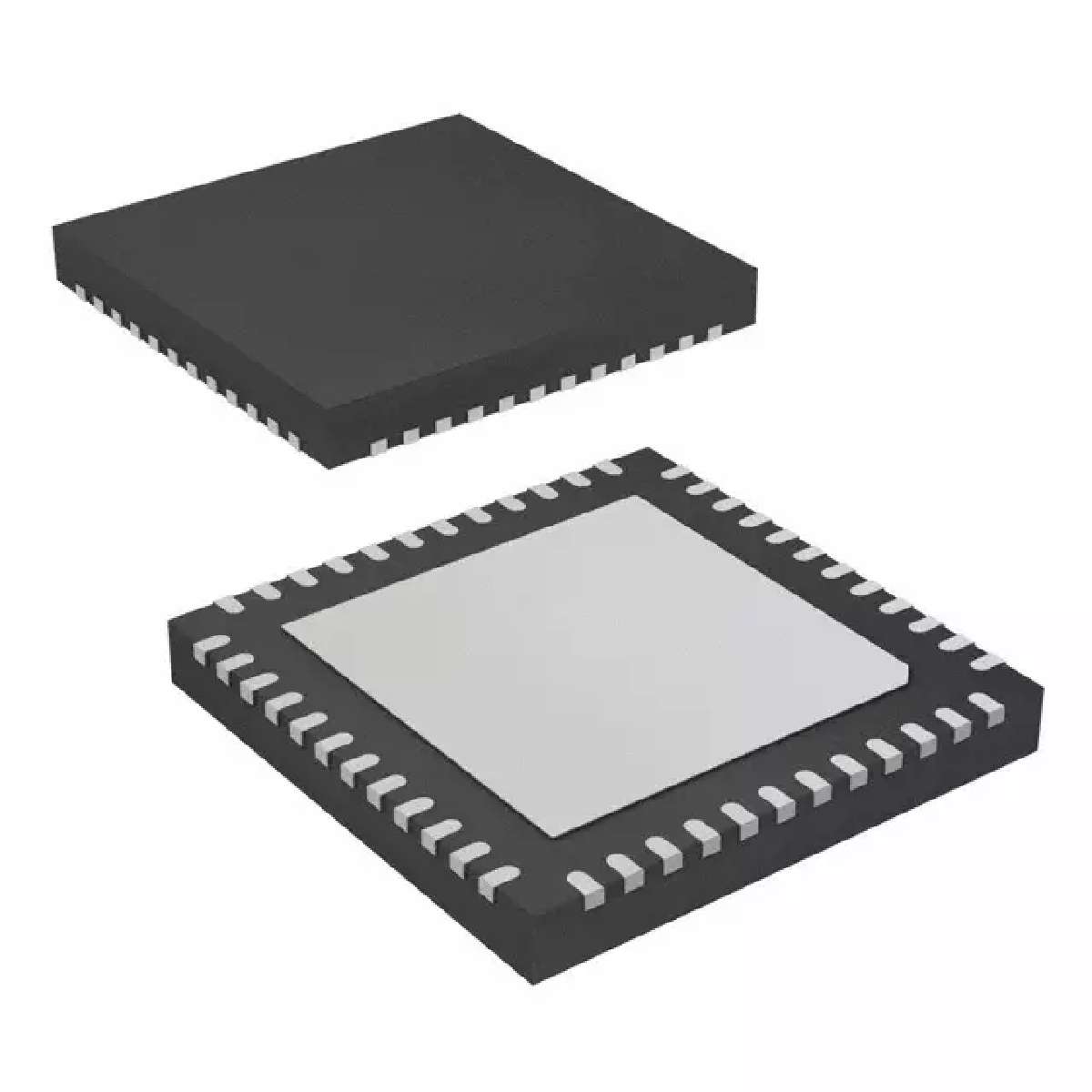

TEXAS INSTRUMENTS  MSP430F5506IRGZR  微控制器, 16位, 混合信号, MSP430F5xx, 25 MHz, 24 KB, 6 KB, 48 引脚, QFN

The is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 5µs. The device configurations with four 16-bit timer, 10-bit A/D converter, two universal serial communication interfaces USCIs, three-channel internal DMA, a 32-bit hardware multiplier and 31 general-purpose I/O pins. This device operates at a maximum frequency of 25MHz.

.

16-bit RISC architecture, extended memory, up to 25MHz system clock

.

Fully integrated LDO with programmable regulated core supply voltage

.

Supply voltage supervision, monitoring and brownout

.

FLL Control loop for frequency stabilization

.

Low-power low-frequency internal clock source VLO

.

Low-frequency trimmed internal reference source REFO

.

32kHz Watch crystals XT1

.

High-frequency crystals up to 32MHz XT2

.

16-bit Timer TA0, Timer_A with five Capture/Compare registers

.

16-bit Timer TA1, Timer_A with three Capture/Compare registers

.

16-bit Timer TA2, Timer_A with three Capture/Compare registers

.

16-bit Timer TB0, Timer_B with seven Capture/Compare shadow registers

.

Enhanced UART supports auto-baudrate detection

.

IrDA Encoder and decoder

.

Synchronous SPI

.

Full-speed USB - integrated USB-PHY, 3.3V and 1.8V USB power system, USB-PLL, 8 I/O endpoints

.

10-bit ADC with window comparator

.

Serial on-board programming

.

No external programming voltage needed

.

Basic timer with RTC
