MC10811A6W-FPTLW

MIDAS  MC10811A6W-FPTLW  字母数字液晶屏, 8 x 1, 白色底黑色字, 5 V, 并行, 英式, 欧式, 半透反射

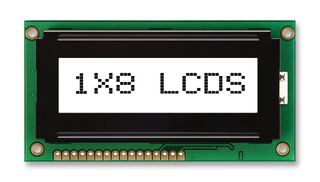

* Alphanumeric / character LCD module

.

1 line of 8 characters - 1 x 8 also referred to as 8 x 1

.

Positive mode FSTN material

.

Appearance - black characters on white background

.

Transflective technology, generally for indoor and outdoor applications

.

Chip on board construction COB for easy mounting

.

On board controller SPLC780 or equivalent HD44780 derivative

.

English/Japanese font sets

.

5V logic supply, standard parallel interface

.

Display duty 1/8, Driving bias 1/484

.

White LED backlight

.

Preferred view angle - 6 o"clock

.

-20 to +70°C wide operating temperature range

.

16 way through hole SIL bottom left connection, 2.54mm pitch

.

Overall max dimensions - 84.0 x 44.0 x 13.5mm

.

Viewing area - 61.0 x 15.8mm

.

11mm character actual dimension 6.45 x 10.75mm
