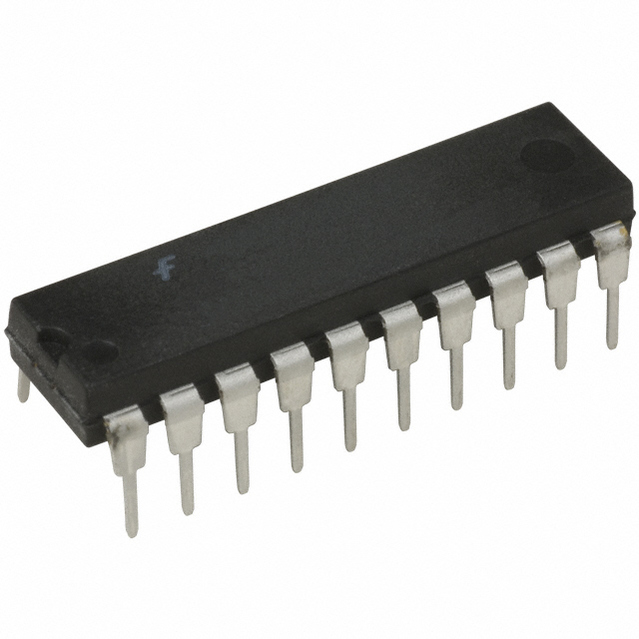

FAIRCHILD SEMICONDUCTOR MM74HCT245N 芯片, 74HCT CMOS逻辑器件
General Description
The MM74HCT245 3-STATE bi-directional buffer utilizes advanced silicon-gate CMOS technology and is intended for two-way asynchronous communication between data buses. It has high drive current outputs which enable high speed operation even when driving large bus capacitances. This circuit possesses the low power consumption of CMOS circuitry, yet has speeds comparable to low power Schottky TTL circuits.
This device is TTL input compatible and can drive up to 15 LS-TTL loads, and all inputs are protected from damage due to static discharge by diodes to VCC and ground. The MM74HCT245 has one active low enable input G, and a direction control DIR. When the DIR input is HIGH, data flows from the A inputs to the B outputs. When DIR is LOW, data flows from B to A.
MM74HCT devices are intended to interface between TTL and NMOS components and standard CMOS devices. These parts are also plug-in replacements for LS-TTL devices and can be used to reduce power consumption in existing designs.
Features
■ TTL input compatible
■ 3-STATE outputs for connection to system busses
■ High output drive current: 6 mA min
■ High speed: 16 ns typical propagation delay
■ Low power: 80 PA 74HCT Series
电源电压DC 5.00 V
电路数 8
通道数 8
针脚数 20
位数 8
耗散功率 600 mW
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 600 mW
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 20
封装 DIP-20
高度 3.43 mm
封装 DIP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MM74HCT245N Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
CD74HCT245E 德州仪器 | 功能相似 | MM74HCT245N和CD74HCT245E的区别 |
MC74HCT245ANG 安森美 | 功能相似 | MM74HCT245N和MC74HCT245ANG的区别 |
74HCT245N 飞兆/仙童 | 功能相似 | MM74HCT245N和74HCT245N的区别 |
