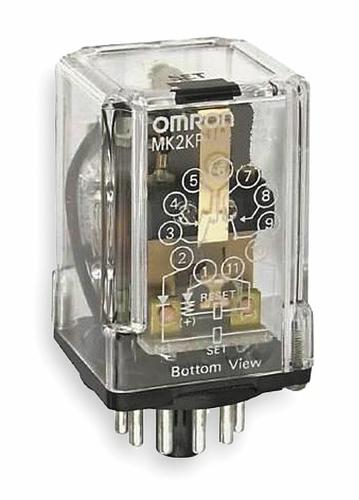

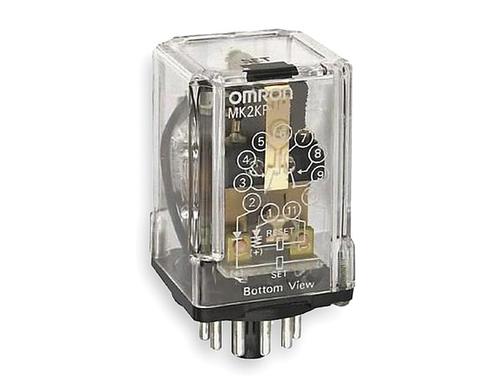

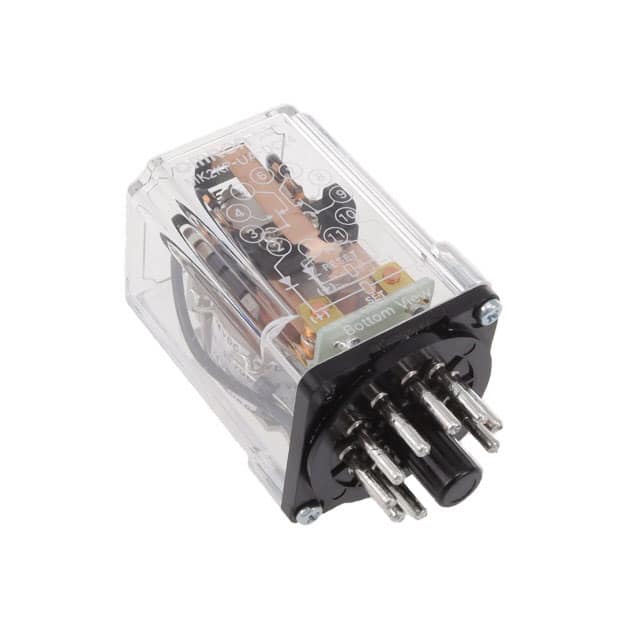

Electromechanical Relay DPDT 5A 24VDC 210Ω Socket
** MK2 Series**
The MK2 series relays off the user an alternative where the application requires high durability and reliability. They have a high mechanical operating frequency of 1,800 operations/hour, even under the rated load. They also have a high shock resistance with an approximate 50G’s mechanical durability and 10G’s malfunction durability.
得捷:
RELAY GEN PURPOSE DPDT 5A 24V
艾睿:
Electromechanical Relay 24VDC 210Ohm 5A DPDT35.56x34.544x52.578mm Socket Latching Relay
Allied Electronics:
RELAY; GENERAL PURPOSE; 10 A; 24 VDC; AG; 2000 VAC; UL; CSA; TUV; VDE APPROVED
Chip1Stop:
Electromechanical Relay DPDT 5A 24VDC 210Ohm Socket
Verical:
Electromechanical Relay 24VDC 210Ohm 5A DPDT35.56x34.544x52.578mm Socket Latching Relay
Newark:
# OMRON INDUSTRIAL AUTOMATION MK2KP-UA-DC24 Power Relay, DPDT, 24 VDC, 5 A, MK Series, Socket, Non Latching
额定电压DC 250 V
额定电压AC 500 V
额定电流 10 A
触点类型 DPDT
功耗 1.5 W
触点额定电流 5 A
线圈电压 24 VDC
线圈电流 110 mA
线圈电阻 210 Ω
载流 10.0 A
线圈电压DC 24 V
线圈功率 2.3 W
额定功率Max 72W, 1.1KVA
工作温度Max 40 ℃
工作温度Min -10 ℃
安装方式 Plug In, Solder
引脚数 11
长度 35.56 mm
宽度 34.544 mm
高度 52.578 mm
触点材质 Silver
工作温度 -10℃ ~ 40℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
