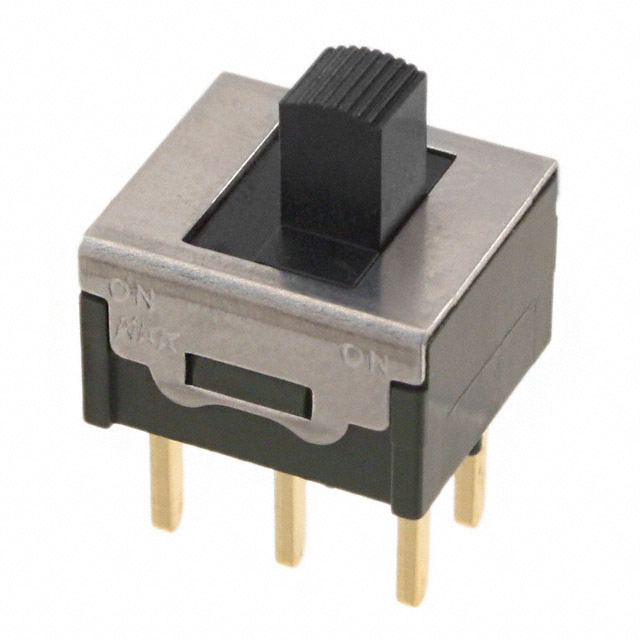

NKK SWITCHES MS22ANG03 滑动开关, DPDT, 0.1A, 28V, 通孔安装
滑动 DPDT 通孔
得捷:
SWITCH SLIDE DPDT 0.4VA 28V
贸泽:
Slide Switches DPDT ON-NONE-ON PC
艾睿:
This MS22ANG03 slide switch from NKK Switches is the best way to turn your circuit on or off. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a DPDT configuration. This slide switch has an operating temperature range of -30 °C to 85 °C. The MS22ANG03 slide switch has a PC pin termination style. This product is 12.7 mm long, 14.25 mm tall and 11.9 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
MINIATURE SLIDE/SOLDER & PC
Jameco:
Switch Slide One-None-On Double Pole Double Throw Top Slide 0.1 Amp 28VAC 28 Volt 0.4VA 100000 Cycle PC Pins Through Hole
Chip1Stop:
Switch Slide ON None ON DPDT Top Slide 0.1A 28VAC 28VDC 0.4VA 100000Cycles PC Pins Thru-Hole
Verical:
Switch Slide ON None ON DPDT Top Slide 0.1A 28VAC 28VDC 0.4VA 100000Cycles PC Pins Thru-Hole
Newark:
Slide Switch, DPDT, On-None-On, Through Hole, 100 mA, 28 V
Powell:
MINIATURE SLIDE/SOLDER & PC
额定电压DC 28 V
额定电压AC 28 V
排数 2
方向 Vertical
触点类型 DPDT
额定电流Max 0.1A @28VAC, 28VDC
额定功率Max 0.4 VA
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 28 V
接触电阻Max 20 mΩ
安装方式 Through Hole
长度 12.7 mm
宽度 11.9 mm
高度 14.25 mm
触点材质 Copper
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
