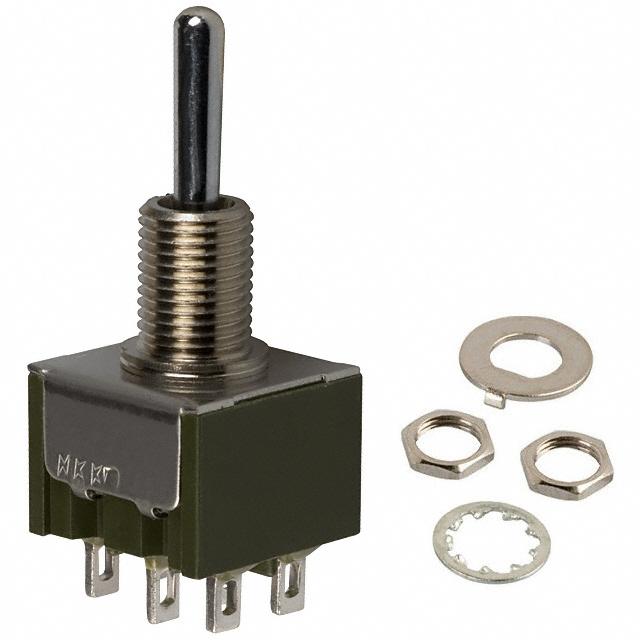

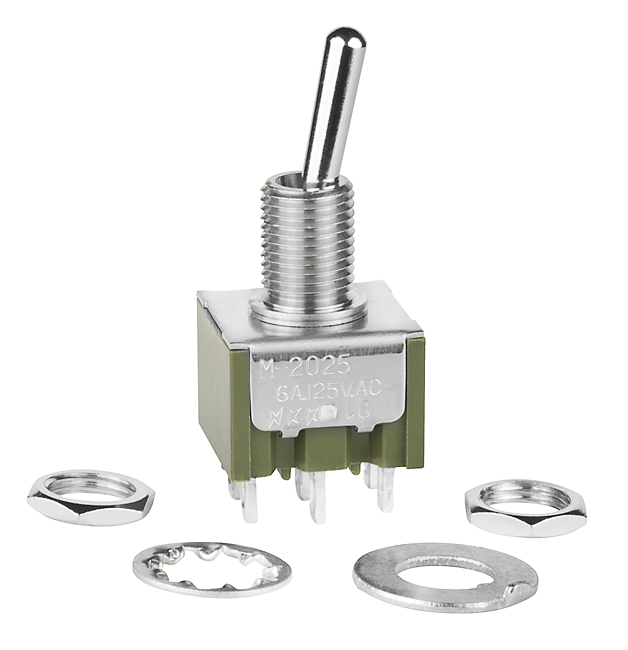

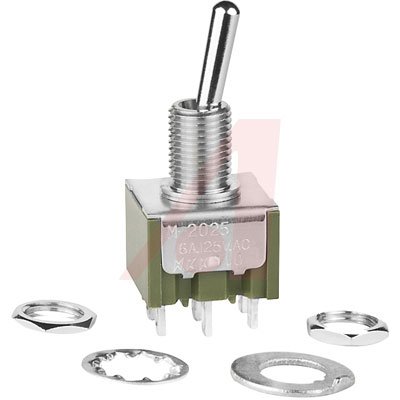

M2025SS1W01

Switch Toggle ON None ON DPDT Small Bat Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads

Series M miniature toggle switches are built to function most anywhere you put them. Antirotation, antijamming design protects contacts from damage due to excessive forces on the actuator. High insulating barriers increase isolation of circuits in multipole devices and provide added protection to contact points. Epoxy sealed terminals prevent entry of solder flux and other contaminants.

得捷:
SWITCH TOGGLE DPDT 6A 125V

贸泽:
Toggle Switches ON-NONE-ON DPDT

艾睿:
This M2025SS1W01 toggle switch from NKK Switches acts like a light switch to turn on or off any part of your circuit. This device has a maximum current rating of 6 A @ 125VAC. It has a DPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The M2025SS1W01 toggle switch has a solder lug termination style. This product is 13 mm long, 33.3 mm tall and 12.7 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.

Allied Electronics:
SWITCH, TOGGLE, SUBMINIATURE, BAT LEVER, THREADED BUSHING, SOLDER LUG, DPDT

Chip1Stop:
Switch Toggle ON None ON DPDT Small Bat Toggle Solder Lug 6A 250VAC 30VDC Panel Mount with Threads

Verical:
Switch Toggle ON None ON DPDT Small Bat Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads

Newark:
# NKK SWITCHES  M2025SS1W01  Toggle Switch, M Series, Non Illuminated, DPDT, On-None-On, Panel, 6 A

Powell:
MINIATURE TOGGLE/MULTI-FUNCTION
