M165-JR-24D

M165-JR-24D图片1

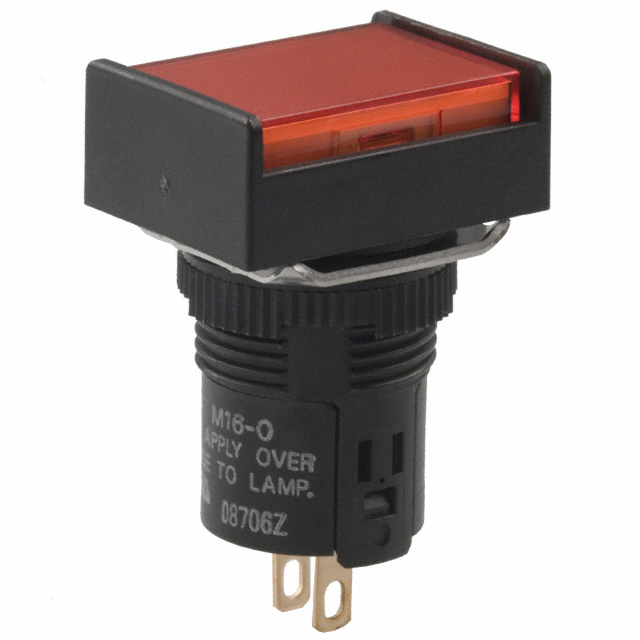

M165-JR-24D图片2
M165-JR-24D图片3
M165-JR-24D图片4

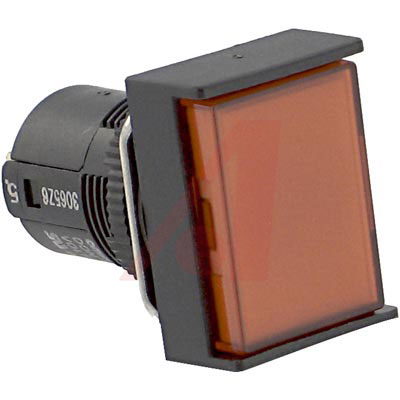

M165-JR-24D图片5
M165-JR-24D图片6
M165-JR-24D概述

Omron M16 红色 导向灯灯头, 面板安装

24 VDC +/- 5%, 10 mA, M16 Series Rectangular LED Indicator

Complete line of illuminated and non-illuminated pushbuttons, pilot lights, selector switches, key-type selector switches, E-Stop switches, buzzers and accessories. Available through your local Allied sales office.

* CE Approved, UL and CSA Approved

* IP65 Rated Industrial Devices

* Two-Piece Snap-Together Construction

* No Tools Required Installation


得捷:
LED PANEL INDICATOR RED 24V


立创商城:
M165-JR-24D


艾睿:
Switch Indicators 24VDC 10mA LED Rectangular Solder Panel Mount with Threads


Allied Electronics:
Switch, PILOT LIGHT, 24V, Rectangular, AC/DC, LED, RED


M165-JR-24D中文资料参数规格
技术参数

接触器类型 Button

额定电流 10 mA

触点额定电流 10.0 mA

工作温度Max 55 ℃

工作温度Min -10 ℃

额定电压 24 VDC

电源电压 24VAC, 24VDC

封装参数

安装方式 Panel, Solder Lug

封装 -

外形尺寸

长度 24.0 mm

宽度 18.0 mm

高度 28.5 mm

封装 -

物理参数

颜色 Red

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买M165-JR-24D
型号: M165-JR-24D
制造商: Omron 欧姆龙
描述:Omron M16 红色 导向灯灯头, 面板安装
