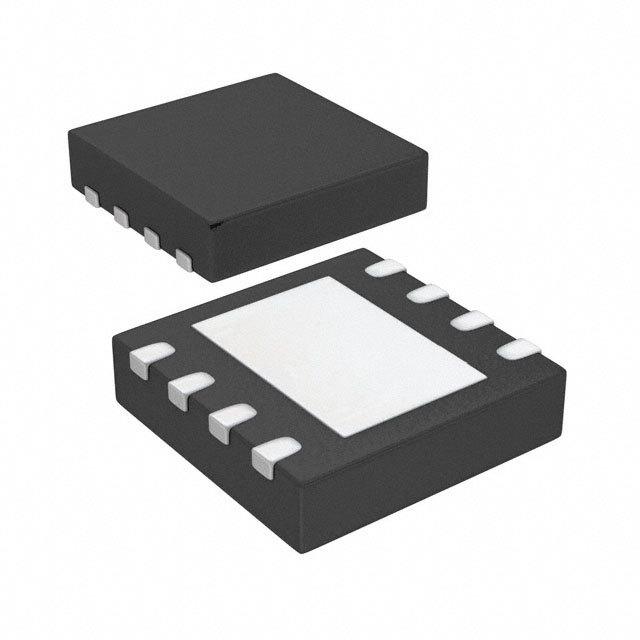

LDO Regulator Pos 1.8V 0.3A Automotive 8Pin DFN EP
Linear Voltage Regulator IC 1 Output 300mA 8-DFN 2x3
得捷:
IC REG LINEAR 1.8V 300MA 8DFN
立创商城:
MCP1755-1802E/MC
贸泽:
LDO Voltage Regulators MPLAB Starter Kit
艾睿:
This LDO MCP1755-1802E/MC linear regulator from Microchip Technology is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.3@300mA V. This voltage regulation device&s;s single output can produce a current up to 0.3 A. Use this part at voltages between 3.6 V and 16 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. At a load regulation of 0.1%Typ and line regulation of 0.01%/VTyp your circuit is capable of maintaining a constant voltage level at your output. The maximum dropout voltage is 0.5@300mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
Allied Electronics:
16 V, 300mA low quiescent current Ido with shutdown and power good.
输出接口数 1
输入电压DC 3.60V min
输出电压 1.8 V
输出电流 300 mA
静态电流 68.0 µA
输出电容类型 Ceramic
跌落电压 300 mV
输入电压Max 16 V
输入电压Min 3.6 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±2 %
输入电压 3.6V ~ 16V
安装方式 Surface Mount
引脚数 8
封装 DFN-8
封装 DFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
