M29W256GL7AN6E

M29W256GL7AN6E图片1
M29W256GL7AN6E概述

NOR Flash Parallel 3V/3.3V 256Mbit 32M/16M x 8Bit/16Bit 70ns 56Pin TSOP Tray

FLASH - NOR Memory IC 256Mb 32M x 8, 16M x 16 Parallel 70ns 56-TSOP


得捷:
IC FLASH 256MBIT PARALLEL 56TSOP


艾睿:
NOR Flash Parallel 3V/3.3V 256M-bit 32M x 8/16M x 16 70ns Automotive 56-Pin TSOP Tray


安富利:
NOR Flash Parallel 3V/3.3V 256Mbit 32M/16M x 8bit/16bit 70ns 56-Pin TSOP Tray


Chip1Stop:
NOR Flash Parallel 3V/3.3V 256M-bit 32M x 8/16M x 16 70ns Automotive 56-Pin TSOP Tray


M29W256GL7AN6E中文资料参数规格
技术参数

位数 8, 16

存取时间 70 ns

存取时间Max 70 ns

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 2.7V ~ 3.6V

封装参数

安装方式 Surface Mount

引脚数 56

封装 TSOP-56

外形尺寸

封装 TSOP-56

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

数据手册

M29W256GL7AN6E引脚图与封装图

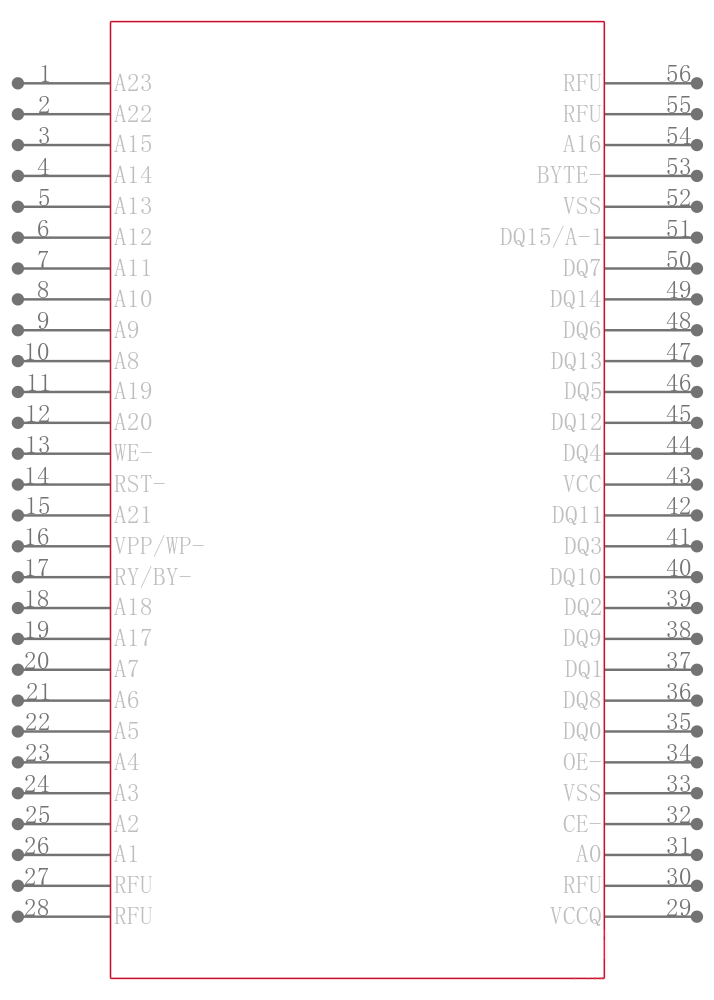

M29W256GL7AN6E引脚图

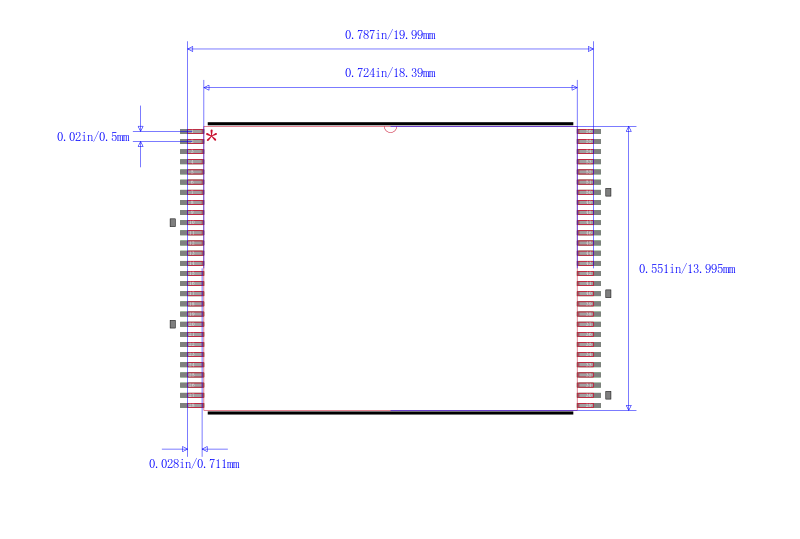

M29W256GL7AN6E封装图

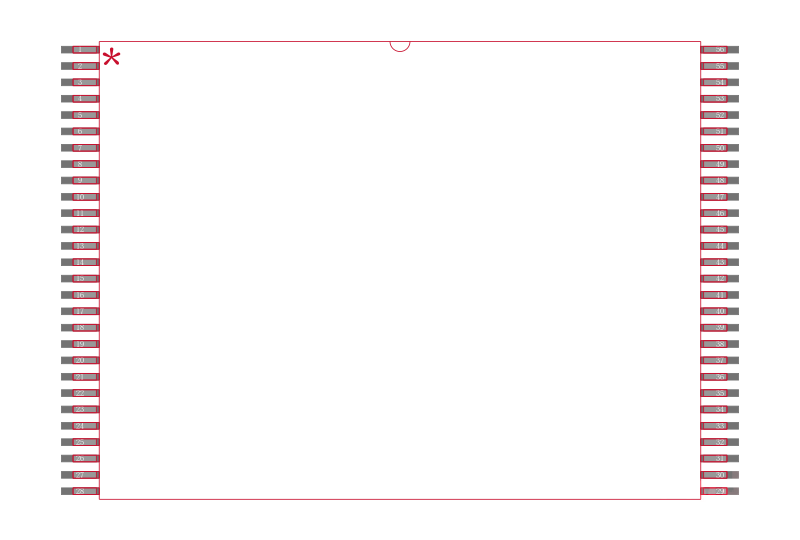

M29W256GL7AN6E封装焊盘图
在线购买M29W256GL7AN6E
型号: M29W256GL7AN6E
制造商: Micron 镁光
描述:NOR Flash Parallel 3V/3.3V 256Mbit 32M/16M x 8Bit/16Bit 70ns 56Pin TSOP Tray
