固定电感器
固定器
立创商城:
18nH ±5% 1.04Ω
得捷:
FIXED IND 18NH 200MA 1.4 OHM SMD
贸泽:
Fixed Inductors
艾睿:
An ideal space-saving electronic component is this high frequency chip MLG0603P18NJT000 surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 200m A with a maximum resistance of 1.4 Ohm. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. This device is made with multi-layer technology. It has an inductance of 18n H. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 3G Hz. It has a tolerance of 5%.
安富利:

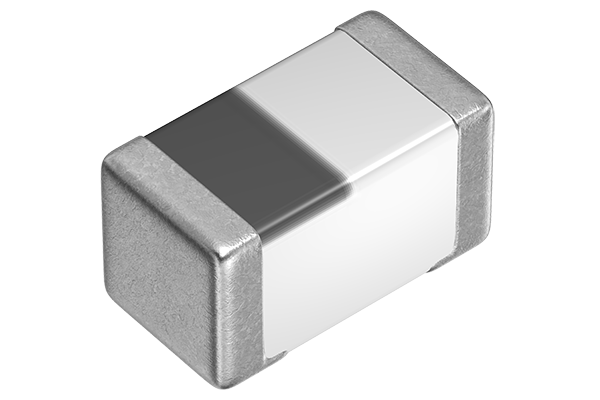

MLG0603P18NJT000
Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.018uH 5% 500MHz 14Q-Factor Ceramic 0.2A 1.4Ohm DCR 0201 T/R
额定电流 200 mA
容差 ±5 %
电感 18 nH
自谐频率 3 GHz
Q值 14
产品系列 MLG-P
电感公差 ±5 %
测试频率 500 MHz
电阻DC) 1.4 Ω
工作温度Max 125 ℃
工作温度Min 55 ℃
精度 ±5 %
电阻DC Max 1.4 Ω
安装方式 Surface Mount
封装公制 0603
封装 0201
长度 0.6 mm
宽度 0.3 mm
高度 0.33 mm
封装公制 0603
封装 0201
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 无铅
