互补硅功率晶体管 COMPLEMENTARY SILICON POWER TRANSISTORS
NPN
MJF2955 PNP
COMPLEMENTARY SILICON POWER TRANSISTORS 10 AMPERES 90 VOLTS, 30 WATTS
Specifically designed for general purpose amplifier and switching applications.
Features
• Isolated Overmold Package 1500 Volts RMS Min
• Electrically Similar to the Popular MJE3055T and MJE2955T
• Collector−Emitter Sustaining Voltage − VCEOsus 90 Volts
• 10 Amperes Rated Collector Current
• No Isolating Washers Required
• Reduced System Cost
• UL Recognized, File #E69369, to 3500 VRMS Isolation
• Epoxy Meets UL 94 V−0 at 0.125 in
• ESD Ratings: Machine Model, C; 400 V
Human Body Model, 3B; 8000 V
• Pb−Free Packages are Available额定电压DC 60.0 V
额定电流 10.0 A
极性 NPN
耗散功率 30 W
击穿电压集电极-发射极 90 V
集电极最大允许电流 10A
最小电流放大倍数hFE 20 @4A, 4V
最大电流放大倍数hFE 100
额定功率Max 2 W
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole

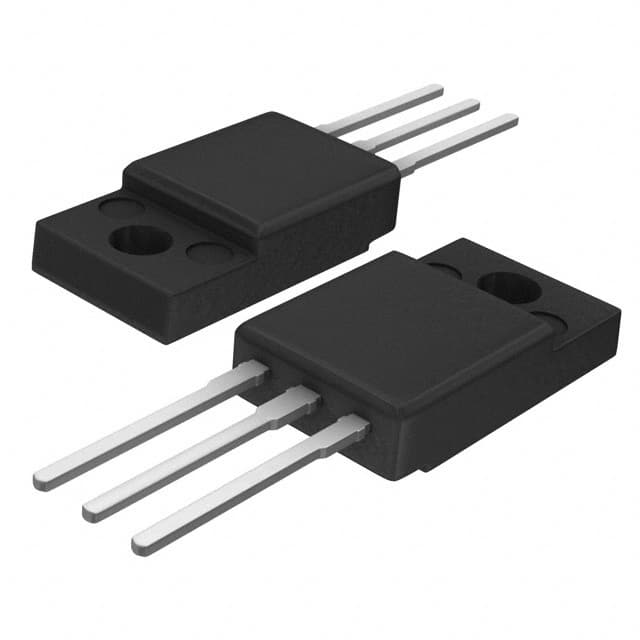

封装 TO-220-3
长度 10.63 mm
宽度 4.9 mm
高度 9.24 mm
封装 TO-220-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Tube
最小包装 50
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MJF3055 ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MJF3055G 安森美 | 完全替代 | MJF3055和MJF3055G的区别 |
