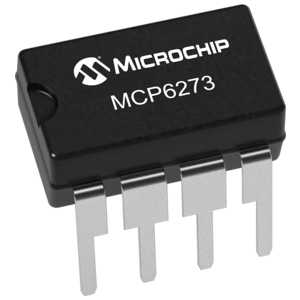

MCP6273-E/P

MICROCHIP  MCP6273-E/P  运算放大器, 单路, AEC-Q100, 2 MHz, 1个放大器, 0.9 V/µs, 2V 至 6V, DIP, 8 引脚

The is a rail-to-rail Operational Amplifier provide wide bandwidth for the current. This family has a 2MHz gain bandwidth product GBWP and a 65° phase margin. This family also operates from a single supply voltage as low as 2.0V, while drawing 170µA typical quiescent current. This supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300mV to VSS-300mV. This family of operational amplifier is designed with s advanced CMOS process. This has a Chip Select input CS for dual op amps in an 8-pin package and is manufactured by cascading two op amps the output of op amp A connected to the non-inverting input of operational amplifier B. The CS input puts the device in low power mode.

.

±3 mV maximum Input offset voltage

.

170µA typical Quiescent current

.

65dB typical Common mode rejection ratio

.

70dB typical Power supply rejection ratio

.

Rail-to-rail input/output

.

Unity gain stable

ESD sensitive device, take proper precaution while handling the device.
