M50-3500642

HARWIN  M50-3500642  板至板连接, 直型, Archer M50系列, 12 触点, 针座, 1.27 mm, 通孔安装, 2 排

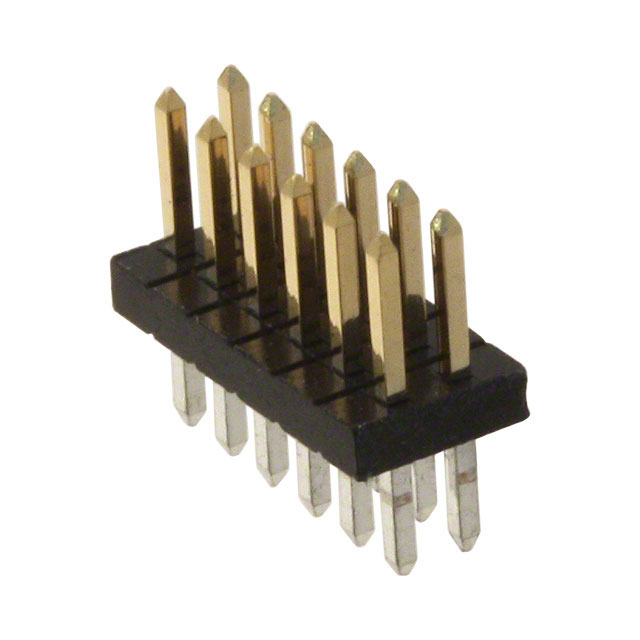

The is a 12-contact 2-row 1.27mm male Board-to-board Pin Header with gold plated phosphor bronze contacts, 100% tin over nickel plated termination and black UL94V-0 polyamide nylon 6T housing. The M50 series plug has 3mm mating pin height, vertical connector orientation and PC tail/through board connection type. It is suitable for use with 0.4mm square mating pin size.

.

1A Maximum current rating

.

20mR Maximum contact resistance

.

1000MR Minimum insulation resistance

.

1000VACrms/DC for one minute Dielectric strength

.

300 operations Durability
