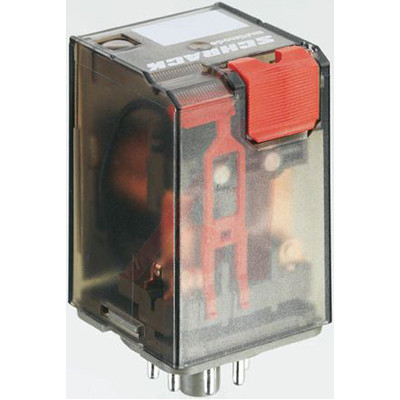

RELAY, MULTIMODE, 115VAC, 2 CO CONTACTS, 8Pin, W/ LED AND TEST BUTTON
* Operating Temperature: –20°C to +80°C
* Contact Rating: 6 A @ 125 VAC, 3 A @ 250 VAC
* Insulation Resistance: 1000 Megohms Min. @ 500 VDC Min. for 1 Minute
* Dielectric Strength: 1500 VAC
艾睿:
Electromechanical Relay 115VAC 2KOhm 20A DPDT35.5x35.6x57mm Plug-In General Purpose Relay
Allied Electronics:
RELAY, MULTIMODE, 115 VAC, 2 CO CONTACTS, 8 PIN, W/ LED AND TEST BUTTON
Chip1Stop:
Electromechanical Relay 115VAC 2KOhm 20A DPDT 35.5x35.6x57mm Plug-In General Purpose Relay
Verical:
Electromechanical Relay 115VAC 2KOhm 20A DPDT 35.5x35.6x57mm Plug-In General Purpose Relay
MASTER:
Electromechanical Relay 115VAC 2KOhm 20A DPDT35.5x35.6x57mm Plug-In General Purpose Relay
Electro Sonic:
Electromechanical Relay 115VAC 2KOhm 20A DPDT35.5x35.6x57mm Plug-In General Purpose Relay
额定电压AC 400 V
额定电流 10 A
触点类型 DPDT
功耗 1.20 W
跌落电压 34.5 V
触点额定电流 20 A
线圈电压 115 V
线圈电压AC 115 V
线圈电阻 2 KΩ
额定电流Max 20 A
额定功率Max 2.5 KVA
工作温度Max 50 ℃
工作温度Min -40 ℃
安装方式 Plug In
引脚数 8
长度 35.5 mm
宽度 35.6 mm
高度 57 mm
触点材质 Silver Nickel
工作温度 -40℃ ~ 50℃
产品生命周期 Active
包装方式 Tray, Box
RoHS标准 RoHS Compliant
含铅标准 Not Applicable
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536490075
